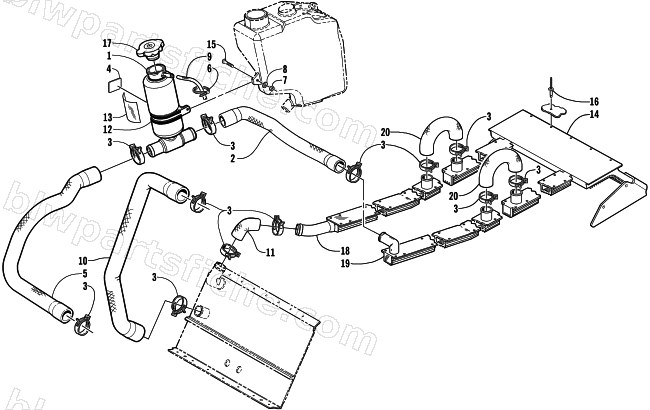

COOLING ASSEMBLY
2001 MOUNTAIN CAT 800 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-396 | TANK,COOLANT-'ZR' STYLE | 1 | $41.95 | |
| 2 | 0610-379 | HOSE,COOLANT-LH EXCH. TO TANK | 1 | $41.95 | |
| 4 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 5 | 0610-427 | HOSE, COOLANT,TANK/PUMP | 1 | $65.95 | |
| 6 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 10 | 0610-426 | HOSE, COOLANT,THERMO TO FRT EXCH | 1 | $53.95 | |
| 11 | 0610-244 | HOSE,COOLANT-FRONT EXCH.TO RH EXCH. | 1 | $26.95 | |
| 12 | 0623-761 | CLAMP,COOLANT TANK | 1 | $6.89 | |
| 13 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 14 | 1706-256 | HEAT EXCH,REAR-WELD'T(MC 144") | 1 | $442.95 | |
| 15 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 16 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 17 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 18 | 1706-826 | HEAT EXCH, FNT R/H - WELD'T | 1 | $257.95 | |
| 19 | 1706-827 | HEAT EXCH, FNT L/H - WELD'T | 1 | $261.95 | |
| 20 | 0610-441 | HOSE, HEAT-EXCHNGR - 156" M/C KIT | 1 | $41.95 |
