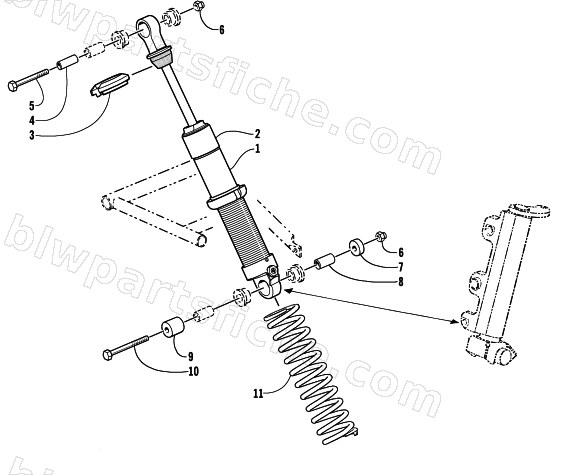

2001 Arctic Cat MOUNTAIN CAT 800 () — FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
2001 MOUNTAIN CAT 800 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2703-224 | KIT,SKI SHOCKS-S/PARTS | 1 | $1,105.95 | |
| 1 | 2703-133 | SHOCK,SKI - IMP ALUM - 16.90" | 1 | $481.95 | |
| 2 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 3 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 4 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 6 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 7 | 0603-855 | SPACER, SHOCK MTG - REAR | 1 | $3.99 | |
| 8 | 1604-184 | SLEEVE, SHOCK ABSORBER | 1 | $42.95 | |
| 9 | 0603-854 | SPACER, SHOCK MTG - FRT | 1 | $13.73 | |
| 9 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 10 | 8002-234 | SCREW,CAP-HH 3/8-16 X4.00 G5 Z&Y | 1 | $1.50 | |
| 10 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 11 | 0703-812 | SPRING,COMPRESSION - GREEN | 1 | $99.95 | |
| 11 | 1603-860 | SPRING,COMPRESSION-110#-GRN | 1 | $102.95 |
