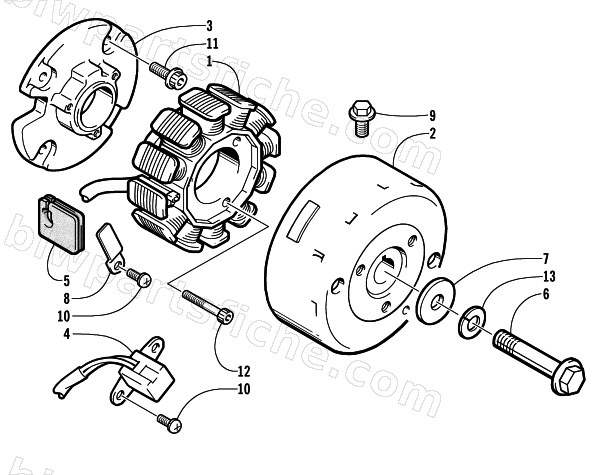

MAGNETO
2001 MOUNTAIN CAT 800 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-784 | STATOR (440L/C SNO PRO/ 800 X 2 APV ) | 1 | $883.95 | |
| 2 | 3005-887 | FLYWHEEL ASSY | 1 | $1,092.95 | |
| 3 | 3005-888 | BASE, STATOR | 1 | $150.95 | |
| 4 | 3005-926 | SENSOR, IGNITION TIMING | 1 | $331.95 | |
| 5 | 3005-775 | GROMMET, MAGNETO LEAD WIRE | 1 | $19.25 | |
| 6 | 3006-476 | BOLT,M10X54 | 1 | $5.65 | |
| 7 | 3008-017 | WASHER, 10.5X30X3.2 | 1 | $5.95 | |
| 8 | 3002-317 | CLAMP,M3 | 1 | $2.95 | |
| 9 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 10 | 3007-553 | SCREW | 1 | $2.33 | |
| 11 | 3007-449 | BOLT | 1 | $3.16 | |
| 12 | 3007-489 | BOLT | 1 | $3.16 | |
| 13 | 3007-424 | LOCK WASHER | 1 | $4.26 |
