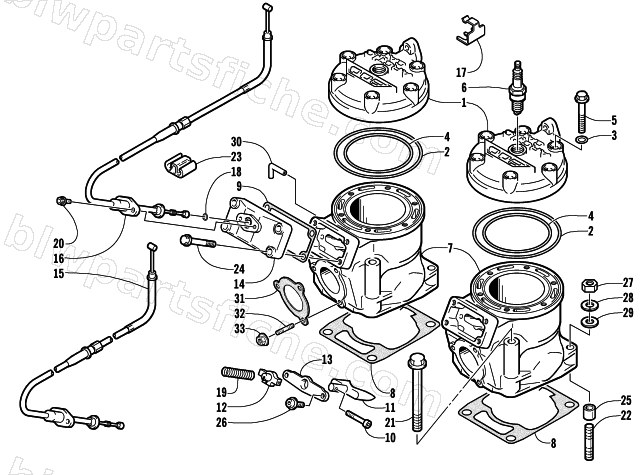

2001 Arctic Cat MOUNTAIN CAT 800 LE () — CYLINDER AND HEAD ASSEMBLY
2001 MOUNTAIN CAT 800 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-780 | HEAD | 1 | $421.95 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3005-854 | O-RING | 1 | $30.95 | |
| 5 | 3007-399 | BOLT,INLET PIPE | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-778 | CYLINDER (800 X 2) | 1 | $1,236.95 | |
| 8 | 3005-951 | GASKET, CYL (REPLACES 2 OF 3005-858) | 1 | $65.95 | |
| 9 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 10 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 11 | 3005-782 | VALVE, EXHAUST(800 X 2 APV)( | 1 | $366.95 | |
| 12 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 13 | 3005-861 | PLATE, EXHAUST VALVE | 1 | $43.95 | |
| 14 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 15 | 3006-386 | CABLE,EXH VALVE PTO | 1 | $102.95 | |
| 16 | 3006-399 | CABLE, EXH VALVE 860 L/C | 1 | $98.95 | |
| 17 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 18 | 3005-651 | O RING,D:1.9,ID:5.7 | 1 | $3.95 | |
| 19 | 3005-736 | SPRING | 1 | $6.34 | |
| 20 | 3007-433 | BOLT | 1 | $3.16 | |
| 21 | 3005-846 | BOLT, 10X115 | 1 | $12.35 | |
| 22 | 3005-847 | BOLT, STUD | 1 | $9.59 | |
| 23 | 3005-808 | CLAMP | 1 | $6.95 | |
| 24 | 3007-381 | BOLT | 1 | $3.16 | |
| 25 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 26 | 3007-449 | BOLT | 1 | $3.16 | |
| 27 | 3007-692 | NUT,10MM | 1 | $3.16 | |
| 28 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 29 | 3007-410 | WASHER | 1 | $2.75 | |
| 30 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 31 | 3005-880 | GASKET, EXHAUST | 1 | $19.25 | |
| 32 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 33 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 |
