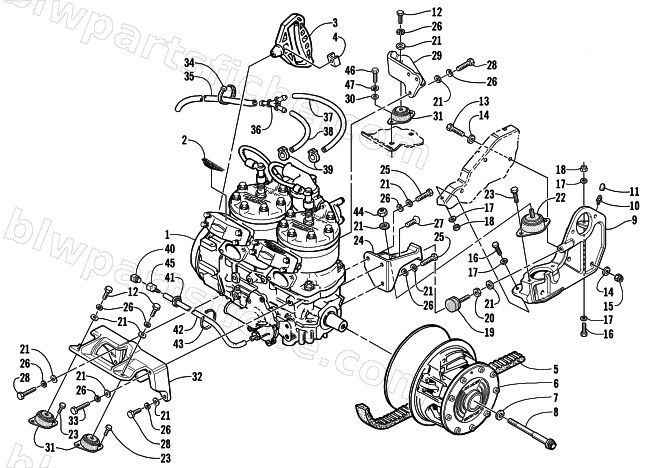

2001 Arctic Cat MOUNTAIN CAT 800 LE () — ENGINE AND RELATED PARTS
2001 MOUNTAIN CAT 800 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0762-239 | SHORT BLOCK W/UNCAL CLUTCH 01 800 CARB | 1 | $2,922.95 | |
| 1 | 0662-297 | ENGINE,785CARB HI ALT'01 | 1 | $3,152.95 | |
| 1 | 0662-279 | ENGINE,785 CARB LO ALT'01(USE 0762-239) | 1 | $2,533.29 | |
| 2 | 3611-967 | DECAL, APV | 1 | $19.95 | |
| 3 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 4 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 5 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 6 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 7 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 8 | 0623-913 | BOLT, CLUTCH - 1/2-20 X 5.92 - 12 PT | 1 | $17.87 | |
| 9 | 0708-392 | BRKT,BEARING SUPPORT-ASSY | 1 | $143.95 | |
| 10 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 11 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 12 | 8002-221 | SCREW,CAP-HH 3/8-16 X.875 G5 Z&Y | 1 | $0.95 | |
| 13 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 14 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 17 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 18 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 19 | 0608-355 | R/B 0608-784 | 1 | $19.95 | |
| 20 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 21 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 22 | 0708-145 | MOUNT,ENGINE-ASSY | 1 | $40.95 | |
| 23 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 24 | 0708-137 | BRKT,ENG MTG-LH-REAR MACH | 1 | $64.95 | |
| 25 | 8005-674 | SCREW, CAP-HSH 3/8-16X1.25 Z&Y | 1 | $1.37 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 0623-881 | SCREW, MACH,HSFH 3/8-16X1.00 Z&Y | 1 | $1.37 | |
| 28 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 29 | 0708-123 | BRKT, ENG,MTG-RH REAR MACH | 1 | $64.95 | |
| 30 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 31 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 32 | 0708-116 | BRKT,ENG MTG-FRONT-MACH | 1 | $121.95 | |
| 33 | 8002-229 | SCREW,CAP-HH 3/8-16 X2.50 G5 Z&Y | 1 | $1.50 | |
| 34 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 35 | 0610-365 | HOSE,DRAIN-VEV (EXIT) | 1 | $15.95 | |
| 36 | 0670-875 | FITTING,'Y' (1/2 X 1/2 X 1/2) | 1 | $19.25 | |
| 37 | 0610-364 | HOSE,DRAIN-VEV (PTO) | 1 | $19.25 | |
| 38 | 0610-363 | HOSE,DRAIN-VEV (MAG) | 1 | $15.95 | |
| 39 | 0624-120 | CLAMP,HOSE (SNP06) | 1 | $2.19 | |
| 40 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 41 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 42 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 43 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 44 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 45 | 0623-801 | ADAPTER,FITTING-1/4-18 NPTF X 1/4 FHB | 1 | $13.73 | |
| 46 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 47 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 |
