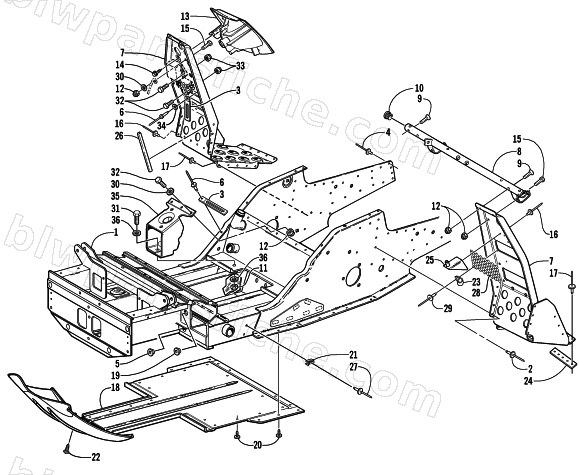

FRONT FRAME AND FOOTREST ASSEMBLY
2001 MOUNTAIN CAT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-547 | CHASSIS, FR END - 800 MC/INT'L | 1 | $1,501.95 | |
| 1 | 0707-548 | CHASSIS,FR END - 800 MC L/E | 1 | $1,390.95 | |
| 2 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 3 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 4 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 6 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 7 | 2606-166 | FOOTREST, RH (UNPAINTED) | 1 | $89.95 | |
| 7 | 2606-167 | FOOTREST, LH (UNPAINTED) | 1 | $119.95 | |
| 8 | 0705-228 | SUPPORT,STEERING-ASSY | 1 | $90.95 | |
| 9 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 10 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 | |
| 11 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 14 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 15 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 16 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 17 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 18 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 19 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 20 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 21 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 22 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 23 | 0623-342 | CLAMP,TUBE | 1 | $5.51 | |
| 24 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 25 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 26 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 27 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 28 | 2706-133 | SCREEN,GUARD-PTD BLK | 1 | $12.95 | |
| 29 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 30 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 31 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 32 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 33 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 34 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 35 | 0708-391 | BRKT, ENG MTG-PTD BLK | 1 | $161.95 | |
| 36 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 |
