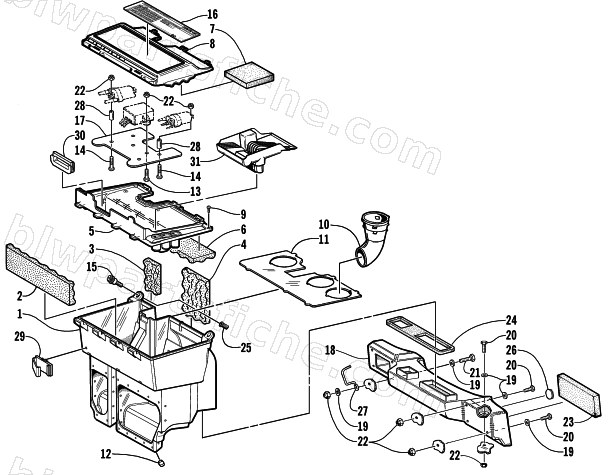

AIR SILENCER ASSEMBLY
2001 PANTERA 1000 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-294 | SILENCER, AIR-MACH ('99 ZRT/THC) | 1 | $130.95 | |
| 2 | 0617-254 | FOAM,AIR SILENCER-FRONT | 1 | $5.95 | |
| 5 | 0770-418 | TRAY,COVER-ROUTED(00 ZRT/THC) | 1 | $36.95 | |
| 6 | 0617-251 | FOAM,AIR SILENCER-TOP LID | 1 | $8.95 | |
| 7 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 8 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 9 | 0623-882 | SCREW, SELF,TAP-PHPNH#10X5/8TYPE AB Z&Y | 1 | $0.15 | |
| 10 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 11 | 0670-863 | BAFFLE, AIR SILENCER (TRIPLE) | 1 | $97.95 | |
| 12 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 13 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 14 | 8017-585 | SCREW,MACH-TSTRH 1/4-20 X 1 1/2 GR2 Z&Y | 1 | $6.95 | |
| 15 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 16 | 3611-935 | DECAL, JET CHART-01 PA 1000 | 1 | $32.95 | |
| 17 | 1606-806 | PLATE, CDI/COILS ('2000 800/THC) | 1 | $24.77 | |
| 18 | 0670-950 | PLENUM, AIR SILENCER-ROUTED (ZRT) | 1 | $122.95 | |
| 19 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 20 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0617-270 | FOAM,PLENUM-INTAKE | 1 | $12.35 | |
| 24 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 25 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 26 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 27 | 0645-235 | BRKT,HARNESS-EFI | 1 | $10.95 | |
| 29 | 0623-792 | CLIP,WIRE/HOSE PUSH MOUNT | 1 | $3.99 | |
| 30 | 0670-827 | GROMMET, ECU | 1 | $5.95 | |
| 31 | 0670-826 | TRAY, TOOL | 1 | $30.95 |
