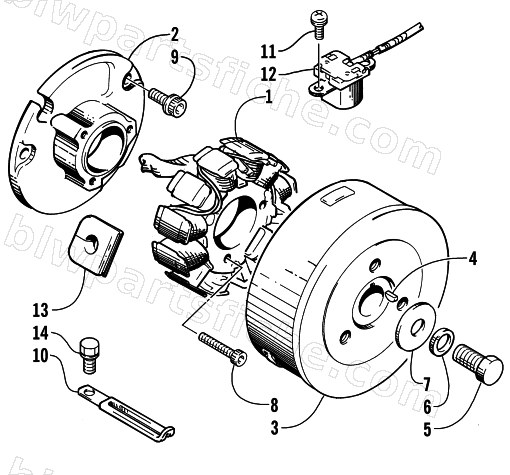

MAGNETO
2001 PANTERA 1000 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-636 | STATOR | 1 | $1,030.95 | |
| 2 | 3005-638 | BASE,STATOR | 1 | $150.95 | |
| 3 | 3005-769 | FLYWHEEL | 1 | $1,435.95 | |
| 4 | 3010-070 | KEY,TYPE 3 M3(FASTENER) | 1 | $3.99 | |
| 5 | 3004-510 | BOLT, 10X20 | 1 | $2.95 | |
| 6 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 7 | 3008-016 | WASHER, 10.5X30X3.2 | 1 | $3.85 | |
| 8 | 3007-489 | BOLT | 1 | $3.16 | |
| 9 | 3007-449 | BOLT | 1 | $3.16 | |
| 11 | 3007-553 | SCREW | 1 | $2.33 | |
| 12 | 3004-073 | SENSOR, IGN TIMING | 1 | $238.95 | |
| 13 | 3008-034 | GROMMET, LEAD WIRE,M10 | 1 | $17.87 | |
| 14 | 3007-371 | BOLT (6X12) | 1 | $3.16 |
