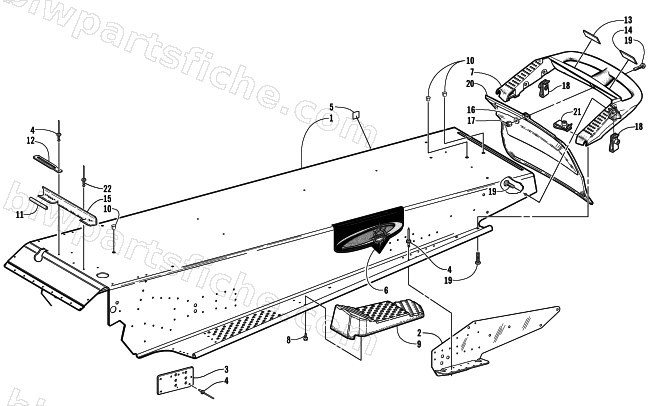

TUNNEL AND REAR BUMPER
2001 PANTERA 1000 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-779 | TUNNEL-ASSY-01 TOURING-PTD BLK | 1 | $1,061.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 6 | 3611-798 | DECAL,TUNNEL-RH | 1 | $55.95 | |
| 6 | 3611-799 | DECAL,TUNNEL-LH | 1 | $55.95 | |
| 7 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 9 | 1606-478 | FOOTREST-RH | 1 | $30.95 | |
| 10 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 11 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 12 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 13 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 14 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 15 | 0607-564 | BRKT, HARNESS PROTECTOR | 1 | $17.95 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 19 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 20 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 21 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 22 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 |
