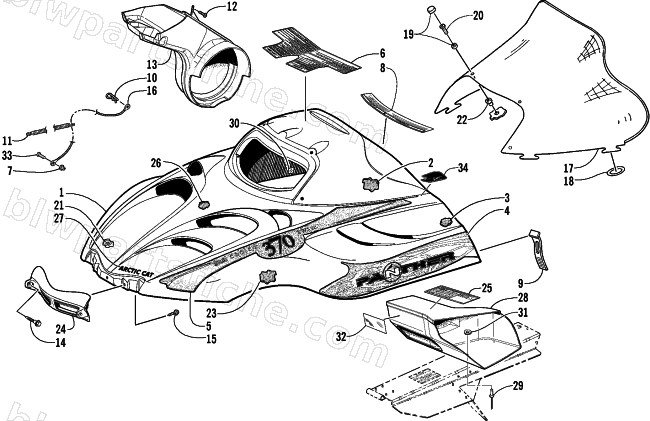

2001 Arctic Cat PANTHER 370 () — HOOD AND WINDSHIELD ASSEMBLY
2001 PANTHER 370 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-920 | HOOD,W/O DECAL | 1 | $1,056.95 | |
| 1 | 0718-922 | HOOD, W/, DECAL | 1 | $1,374.95 | |
| 3 | 0617-322 | FOAM,HOOD-UPPER RH | 1 | $42.95 | |
| 3 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 4 | 3611-836 | DECAL, HOOD, LWR, RH | 1 | $74.95 | |
| 4 | 3611-837 | DECAL, HOOD, LWR,LH | 1 | $74.95 | |
| 5 | 3611-838 | DECAL, HOOD, UPPER, RH (370) | 1 | $89.95 | |
| 5 | 3611-839 | DECAL, HOOD, UPPER, LH (370) | 1 | $89.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 11 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 12 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 13 | 1606-829 | DUCT, AIR IN | 1 | $82.95 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 17 | 1639-965 | WINDSHIELD, '00 ZR HIGH/CLEAR | 1 | $116.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0617-326 | FOAM,HOOD-REAR RH | 1 | $17.95 | |
| 23 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 24 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 25 | 3611-939 | DECAL, JET CHART-01 PA 370 | 1 | $33.95 | |
| 26 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 27 | 3611-835 | DECAL,HOOD (ARCTIC CAT-LIGHT DRIFT WOOD) | 1 | $29.95 | |
| 28 | 1606-872 | DUCT,AIR OUT(2001 Z) | 1 | $66.95 | |
| 29 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 30 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 31 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 32 | 0706-548 | FOIL,3 X 12(0619-728) | 1 | $6.06 | |
| 33 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 34 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 34 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 |
