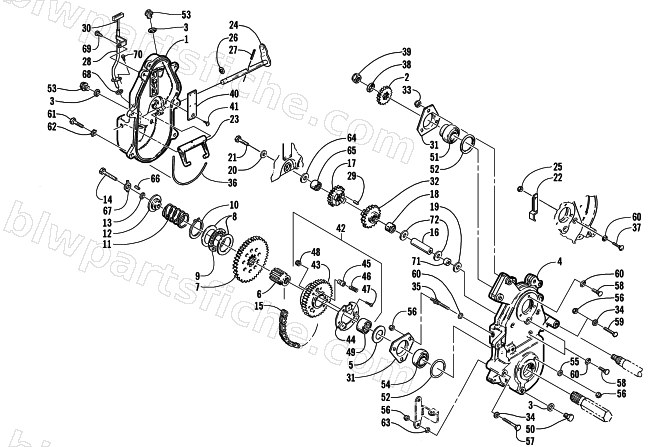

DRIVE/REVERSE DROPCASE ASSEMBLY (esr) (cont)
2001 PANTHER 440 (ESR)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 4639-597 | KIT, REVERSE - 19:39/13W | 1 | $814.95 | |
| 1 | 0702-427 | COVER, DROPCASE-W/ O-RINGS-REV (TUBE-DIP | 1 | $169.95 | |
| 2 | 0602-444 | SPROCKET,19T | 1 | $57.95 | |
| 2 | 0602-445 | SPROCKET,18T | 1 | $60.95 | |
| 3 | 0123-641 | WASHER,FIBER-1/2X13/16X.030 | 1 | $4.95 | |
| 4 | 0702-415 | DROPCASE, W/STUDS-PTD | 1 | $217.95 | |
| 5 | 0602-012 | SPACER, EXT SHAFT-1.0 X 2.0 X .155TH | 1 | $19.25 | |
| 6 | 1602-048 | SHAFT, EXTENSION | 1 | $129.95 | |
| 7 | 0702-048 | GEAR, 55T REVERSE-ASSY | 1 | $429.95 | |
| 8 | 0602-023 | WASHER,THRUST-2.25 | 1 | $15.11 | |
| 9 | 0602-022 | BEARING,THRUST | 1 | $23.39 | |
| 10 | 0602-024 | RING,RETAINING | 1 | $3.99 | |
| 11 | 0602-028 | SPRING, RETURN | 1 | $22.01 | |
| 12 | 0702-372 | RETAINER,EXTENSION SHAFT-ASSY | 1 | $37.95 | |
| 13 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 15 | 1602-041 | CHAIN, 70P - 13 WIDE | 1 | $117.95 | |
| 15 | 1602-042 | CHAIN, 72P - 13 WIDE | 1 | $117.95 | |
| 16 | 0602-094 | SHAFT, REV IDLER | 1 | $42.95 | |
| 17 | 0702-366 | GEAR, 19T IDLER-ASSY | 1 | $153.95 | |
| 18 | 0602-018 | BEARING,DC-.625 | 1 | $19.25 | |
| 19 | 0602-215 | WASHER, THRUST-.625 ID X.030 X 1.105OD | 1 | $3.85 | |
| 20 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 21 | 8002-130 | SCREW, CAP-HH 5/16-18 X .75 G5 Z&Y | 1 | $0.68 | |
| 22 | 0702-553 | BRACKET, CHAIN BACKING-WELDT(0602-466) | 1 | $56.95 | |
| 23 | 0602-085 | FORK,SHIFT-MACHINED | 1 | $96.95 | |
| 24 | 0702-350 | SHAFT,SHIFT FORK-PTD BLK | 1 | $85.95 | |
| 25 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 26 | 0602-021 | SEAL,O-RING .50 OD | 1 | $0.54 | |
| 27 | 0623-542 | PIN,SPRING-3/16 X 7/8 COILED BLK | 1 | $1.92 | |
| 28 | 1602-106 | TUBE, DIPSTICK - WELDMENT | 1 | $39.95 | |
| 29 | 0602-366 | PIN, ALIGNING-IDLERS | 1 | $1.37 | |
| 30 | 1602-107 | DIPSTICK, DROPCASE | 1 | $53.95 | |
| 31 | 0602-198 | PLATE,FLANGE-BEARING (TRIANGLE) | 1 | $12.35 | |
| 32 | 0702-260 | SPROCKET, 24T IDLER-ASSY | 1 | $163.95 | |
| 32 | 0702-147 | SPROCKET,REVERSE-IDLER ASSY | 1 | $210.95 | |
| 33 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 34 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 35 | 0623-317 | STUD,5/16-18 RIBBED-DROPCASE | 1 | $20.63 | |
| 36 | 0602-437 | O-RING,DROPCASE COVER | 1 | $13.73 | |
| 37 | 0623-117 | BOLT,RIB NECK-RDH 1/4-20X1.00 Z&Y | 1 | $20.63 | |
| 38 | 0623-231 | WASHER,SPRING-BELLEVILLE | 1 | $4.26 | |
| 39 | 0123-310 | NUT,FLEXLOCK 1/2-20,THIN | 1 | $4.68 | |
| 40 | 1602-151 | COVER, OIL VENT - REVERSE | 1 | $38.95 | |
| 41 | 0623-081 | SCREW,SELF TAP-PHPNH 8-32X.31 F Z&Y | 1 | $0.26 | |
| 42 | 0702-170 | SPROCKET, 39T-ASSY | 1 | $275.95 | |
| 42 | 0702-629 | SPROCKET, 44T-13W-ASSY | 1 | $299.95 | |
| 44 | 0602-144 | RETAINER,SPRING | 1 | $13.73 | |
| 45 | 0602-133 | PIN,SLIP-.993 LG | 1 | $17.87 | |
| 46 | 0602-138 | SPRING,COMPRESSION-REVERSE | 1 | $3.02 | |
| 47 | 0623-182 | SCREW,CAP-HSBH 10-32 X .875 | 1 | $0.26 | |
| 47 | 0623-906 | SCREW, CAP-BUTN HD #10-24 X 7/8 | 1 | $1.95 | |
| 48 | 0123-430 | NUT,FLEX,LOCK 10-32 | 1 | $2.61 | |
| 48 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 49 | 0602-016 | BEARING,J-2012 DC-1.250 | 1 | $23.39 | |
| 50 | 0602-479 | PLUG, DRAIN-MAGNETIC | 1 | $22.01 | |
| 51 | 1702-180 | KIT,REPLACEMENT BEARING-7/8" | 1 | $63.95 | |
| 52 | 1670-237 | SEAL, O-RING(2-033) | 1 | $0.95 | |
| 53 | 0623-293 | PLUG, DRAIN | 1 | $2.61 | |
| 54 | 1702-179 | KIT,REPLACEMENT BEARING-1" | 1 | $79.95 | |
| 55 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 56 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 57 | 8011-143 | BOLT,CRG 5/16-18X3.50 GR1 Z&Y | 1 | $1.23 | |
| 58 | 0123-523 | BOLT,RIB NECK-RDH 5/16-18X.625 Z&Y | 1 | $3.02 | |
| 59 | 8011-139 | BOLT,CRG 5/16-18X2.50 GR1 Z&Y | 1 | $1.23 | |
| 60 | 0607-025 | O-RING, STUD | 1 | $1.50 | |
| 61 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 62 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 63 | 8042-426 | NUT,5/16-18 HEX-REG-GR5 Z&Y | 1 | $0.54 | |
| 64 | 1602-044 | WASHER, THRUST-.625 ID X .126 X 1.125 OD | 1 | $13.73 | |
| 65 | 1602-045 | BEARING,DC-.625 X .625 | 1 | $19.25 | |
| 66 | 8070-153 | PIN,SPRING-3/32 X 5/16 SLOTTED P&O | 1 | $0.40 | |
| 67 | 1602-046 | WASHER, TAB LOCK - .390 ID | 1 | $0.65 | |
| 68 | 0605-014 | O-RING,RUBBER | 1 | $0.26 | |
| 69 | 0623-640 | SCREW,SELF TAP-HWH 5/16-18X1.0-TT Z & Y | 1 | $0.85 | |
| 70 | 0623-786 | SCREW,SELF TAP-TSPNH 10-24X.375 | 1 | $1.78 | |
| 71 | 0602-093 | SPACER,REV SHAFT-.647X.812X.300 THICK | 1 | $9.59 |
