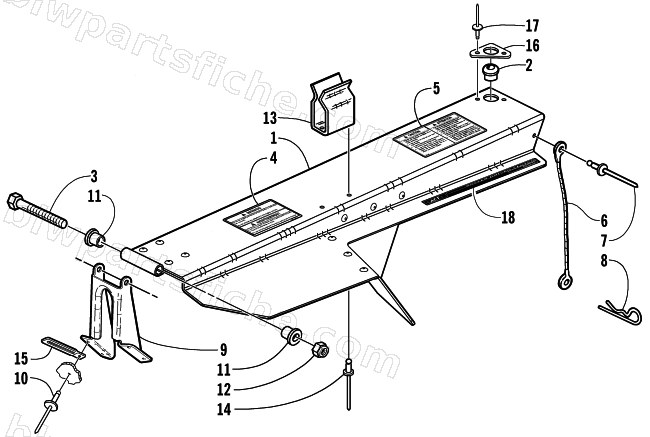

BELT GUARD ASSEMBLY
2001 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-421 | GUARD ASSEMBLY | 1 | $290.95 | |
| 2 | 0607-549 | BUSHING, BELT GUARD | 1 | $3.02 | |
| 3 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 4 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 5 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 6 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 7 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 8 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 9 | 0707-706 | BRKT,MTG-GUARD-PTD BLK | 1 | $24.95 | |
| 10 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 11 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0636-659 | KIT, DRIVE BELT HOLDER | 1 | $13.73 | |
| 14 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 15 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 16 | 0607-550 | PLATE, BUSHING-BELT GUARD-PTD BLK | 1 | $12.95 | |
| 17 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 18 | 3611-969 | DECAL, "ACT-ROLLER DRIVEN CLUTCH" | 1 | $89.95 |
