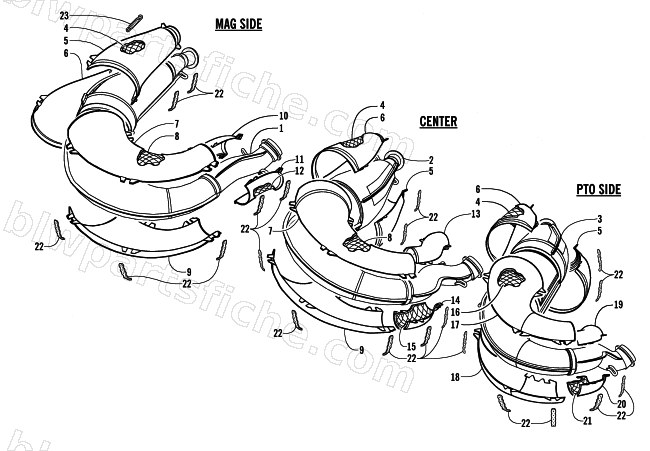

EXPANSION CHAMBER ASSEMBLIES
2001 TRIPLE TOURING 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-698 | CHAMBER, EXP-MAG-WELDT | 1 | $788.95 | |
| 2 | 0712-700 | CHAMBER, EXP-CTR-WELDT | 1 | $629.95 | |
| 3 | 0712-702 | CHAMBER, EXP-PTO-WELDT | 1 | $648.95 | |
| 4 | 0612-869 | PACKING,REAR CONE | 1 | $90.95 | |
| 5 | 0612-841 | COVER EXP CHAMBER REAR CONE LOWER | 1 | $87.95 | |
| 6 | 0612-840 | COVER EXP CHAMBER REAR CONE UPPER | 1 | $77.95 | |
| 7 | 0612-842 | COVER EXP CHAMBER CENTER UPPER | 1 | $90.95 | |
| 8 | 0612-867 | PACKING,CENTER SECTION | 1 | $14.95 | |
| 9 | 0612-843 | COVER EXP CHAMBER CENTER LOWER | 1 | $90.95 | |
| 10 | 0612-844 | COVER EXP CHAMBER MAG FRONT UPPER | 1 | $56.95 | |
| 11 | 0612-845 | COVER EXP CHAMBER MAG FRONT LOWER | 1 | $56.95 | |
| 12 | 0612-866 | PACKING,FRONT MAG | 1 | $10.97 | |
| 13 | 0612-846 | COVER EXP CHAMBER CENTER FRONT UPPER | 1 | $56.95 | |
| 14 | 0612-847 | COVER EXP CHAMBER CENTER FRONT LOWER | 1 | $61.95 | |
| 15 | 0612-865 | PACKING,FRONT CENTER | 1 | $5.09 | |
| 16 | 1612-055 | PACKING, CTR SECT.-PTO | 1 | $13.95 | |
| 17 | 1612-056 | COVER, EXP.-CENTER-UPPER-PTO | 1 | $124.95 | |
| 18 | 1612-057 | COVER, EXP.-CENTER-LOWER-PTO | 1 | $145.95 | |
| 19 | 0612-848 | COVER EXP CHAMBER PTO FRONT UPPER | 1 | $43.95 | |
| 20 | 0612-849 | COVER EXP CHAMBER PTO FRONT LOWER | 1 | $43.95 | |
| 21 | 0612-864 | PACKING,FRONT PTO | 1 | $15.11 | |
| 22 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 23 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 |
