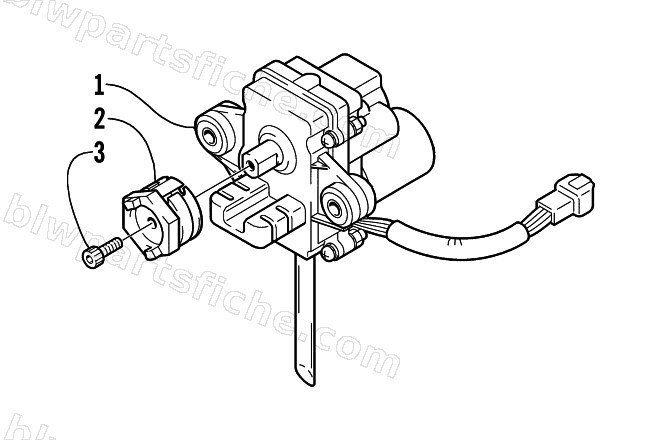

2001 Arctic Cat TRIPLE TOURING 600 () — SERVOMOTOR ASSEMBLY
2001 TRIPLE TOURING 600 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-357 | MOTOR,EXHAUST VALVE | 1 | $754.95 | |
| 2 | 3005-834 | PULLEY, CONTROLLER | 1 | $73.95 | |
| 3 | 3007-426 | BOLT | 1 | $3.16 |
