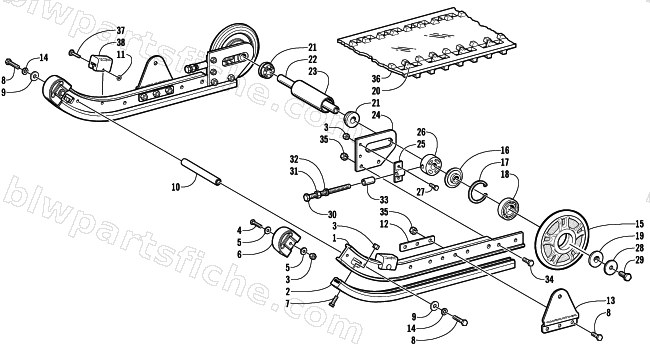

2001 Arctic Cat Z 120 SNO PRO — SLIDE RAIL, IDLER WHEELS, AND TRACK ASSEMBLY
2001 Z 120 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-605 | RAIL, SLIDE-PTD GRN | 1 | $70.95 | |
| 2 | 1604-568 | WEARSTRIP,SLIDE RAIL-BLK-Z 120 | 1 | $23.39 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 5 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 6 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 9 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 10 | 1604-566 | AXLE,CROSSBRACE | 1 | $20.63 | |
| 11 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 12 | 0704-897 | PLATE,BACKING-FRONT ARM SUPPORT-PTD BLK | 1 | $12.35 | |
| 13 | 0704-896 | BRKT,SUPPORT-FRT ARM-PTD BLK | 1 | $19.25 | |
| 14 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 15 | 1604-691 | WHEEL,IDL-5.63 SPOKE(2-5/8DIA INSR)GRN | 1 | $53.95 | |
| 16 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 17 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 18 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 19 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 20 | 1602-079 | CLIP, TRACK | 1 | $10.97 | |
| 21 | 0604-968 | BUSHING,SPACER-REAR WHEEL | 1 | $9.59 | |
| 22 | 1604-562 | AXLE,IDLER-REAR | 1 | $37.95 | |
| 23 | 1604-563 | SPACER,REAR AXLE | 1 | $20.63 | |
| 24 | 1604-661 | HOUSING, REAR,AXLE | 1 | $32.95 | |
| 25 | 0604-206 | TRACK ADJUSTOR-MACHINED | 1 | $13.73 | |
| 26 | 0604-165 | BUSHING,REAR WHEEL-ADJ. | 1 | $10.97 | |
| 27 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 28 | 0123-570 | WASHER,FLAT .390X1.38X.134 | 1 | $5.92 | |
| 29 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 30 | 0124-310 | HHCS 3/8-16X4.0 THREADED GR5 Z&Y | 1 | $2.47 | |
| 31 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 32 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 33 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 34 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 35 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 36 | 2602-476 | TRACK, 2.125 X 10.00 X .688 | 1 | $509.95 | |
| 37 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 38 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 |
