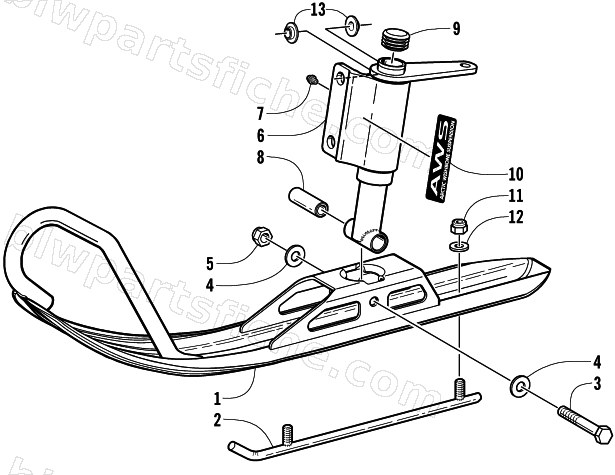

2001 Arctic Cat Z 120 — SKI AND SPINDLE ASSEMBLY
2001 Z 120
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-692 | SKI WELD'T - Z120 | 1 | $139.95 | |
| 2 | 0703-698 | SKAG-PTD BLK | 1 | $19.25 | |
| 3 | 8002-230 | SCREW,CAP-HH 3/8-16 X2.75 G5 Z&Y | 1 | $1.23 | |
| 4 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 2703-216 | SPINDLE,BLK-MFG ASSY | 1 | $287.95 | |
| 7 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 8 | 1603-365 | AXLE, SUSPENSION | 1 | $4.26 | |
| 9 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 10 | 3611-882 | DECAL, SPINDLE | 1 | $26.95 | |
| 11 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 |
