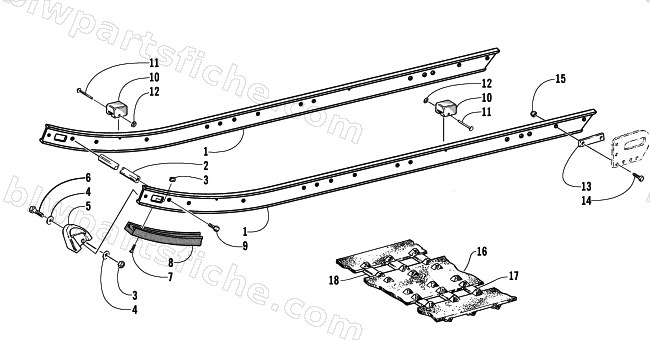

SLIDE RAIL AND TRACK ASSEMBLY
2001 Z 370
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-344 | RAIL,SLIDE-FORMED | 1 | $279.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 0604-231 | NOSE PIECE,SLIDE RAIL-BLACK | 1 | $15.11 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8012-132 | SCREW,CAP-HHNLP 5/16-18X1.0 G5 Z&Y | 1 | $0.65 | |
| 10 | 0104-631 | PAD,SHOCK-RUBBER | 1 | $6.06 | |
| 11 | 0123-767 | RIVET,SOLID-1/8 X 1.50 | 1 | $0.95 | |
| 12 | 0423-090 | NUT,PRESS ON (PUSHNUT)-1/8 STUD | 1 | $0.40 | |
| 13 | 0604-152 | SPACER,REAR AXLE HOUSING | 1 | $7.95 | |
| 14 | 8002-134 | SCREW,CAP-HH 5/16-18 X1.25 G5 Z&Y | 1 | $0.65 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 1602-756 | TRACK,15 X121X.85-BUMP | 1 | $946.95 | |
| 17 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 18 | 2602-384 | CLIP,WEAR | 1 | $3.57 |
