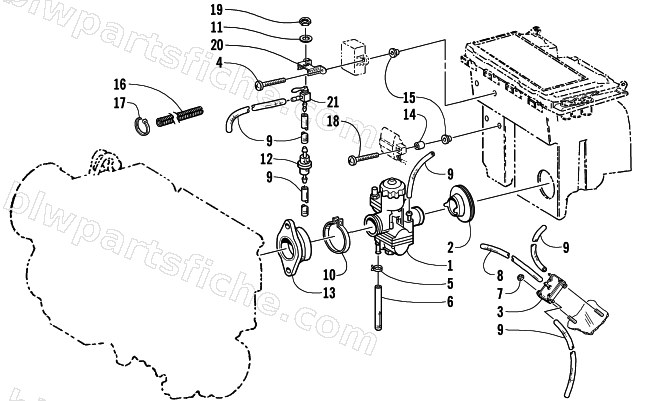

2001 Arctic Cat Z 440 (ES) — CARBURETOR AND FUEL PUMP ASSEMBLY
2001 Z 440 (ES)
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-499 | CARB, ASSY,(VM34-567) 01 Z440/PAN440 | 1 | $583.95 | |
| 2 | 1670-346 | BOOT, AIR SILENCER | 1 | $29.95 | |
| 3 | 0636-272 | PUMP KIT,FUEL-RECT. | 1 | $42.95 | |
| 4 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 5 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 6 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 10 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 11 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 12 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 13 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 14 | 0670-210 | SPACER, CLAMP- 9mm | 1 | $4.40 | |
| 15 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 16 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 17 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 18 | 0623-835 | SCREW,MACH-PHPNH #10-32 X1.75 W/SEMS LW | 1 | $0.55 | |
| 19 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 20 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 21 | 0670-144 | VALVE,SHUT OFF-FUEL | 1 | $50.95 |
