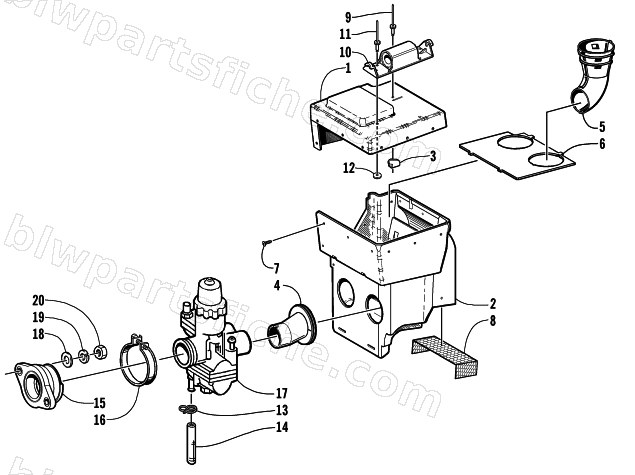

AIR SILENCER ASSEMBLY
2001 Z 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-022 | EXTENSION,AIR SILENCER-TOP | 1 | $185.95 | |
| 2 | 0770-382 | SILENCER,AIR MFG. 99 Z PRO | 1 | $161.95 | |
| 3 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 4 | 1670-350 | BOOT, AIR SILENCER | 1 | $27.95 | |
| 5 | 0670-617 | FUNNEL, AIR SILENCER | 1 | $53.95 | |
| 6 | 1670-033 | BAFFLE,SILENCER-UPPER | 1 | $12.35 | |
| 7 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 8 | 1606-451 | screen,AIR SILENCER-REAR ('98 440 PRO) | 1 | $17.87 | |
| 9 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 10 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 11 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 12 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 13 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 14 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 15 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 16 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 17 | 1670-240 | CARB,VM34-571(2001 Z PRO) | 1 | $582.95 | |
| 18 | 3423-204 | WASHER | 1 | $1.95 | |
| 19 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 20 | 3007-416 | NUT | 1 | $2.75 |
