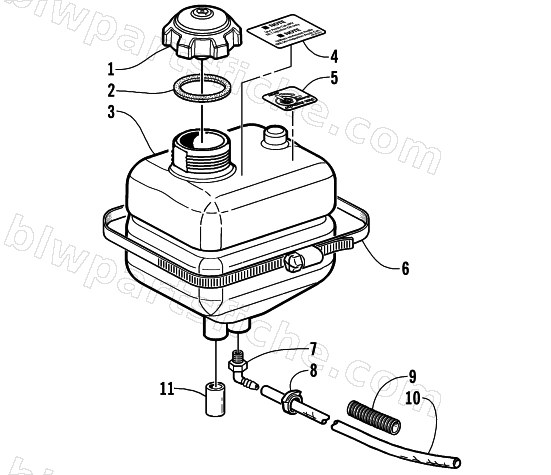

OIL TANK ASSEMBLY
2001 Z 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-871 | CAP,VENTED-GAS/OIL | 1 | $53.95 | |
| 2 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 3 | 0670-917 | TANK,OIL-('98 440 PRO) | 1 | $84.95 | |
| 4 | 1611-564 | DECAL,OIL TANK | 1 | $13.73 | |
| 5 | 4611-029 | DECAL, FUEL SHUT OFF | 1 | $16.95 | |
| 6 | 0623-743 | CLAMP,OIL TANK-7.75" ID ('98 440 PRO) | 1 | $18.95 | |
| 8 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 9 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 10 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 10 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 11 | 0619-519 | SUPPORT,OIL TANK-MACH(99 PRO) | 1 | $6.95 |
