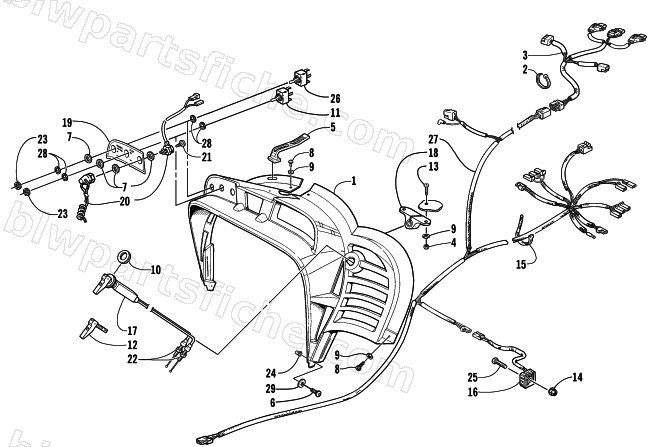

2001 Arctic Cat Z 440 SNO PRO () — CONSOLE, SWITCHES, AND WIRING ASSEMBLIES
2001 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-022 | CONSOLE, NO KEY-W/TETHER | 1 | $243.95 | |
| 2 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 3 | 0686-515 | HARNESS, HOOD-W/ 3 BULB HL | 1 | $132.95 | |
| 4 | 8040-276 | NUT,HEX LOCK-NYL 10-32 Z&Y | 1 | $0.15 | |
| 5 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 6 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 7 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 8 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 9 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 10 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 11 | 0609-233 | SWITCH,HIGH/LOW BEAM | 1 | $25.95 | |
| 12 | 0636-062 | LEVER KIT,CHOKE | 1 | $12.35 | |
| 13 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0630-001 | REGULATOR,VOLTAGE | 1 | $66.95 | |
| 17 | 0687-007 | CABLE,CHOKE-DUAL | 1 | $84.95 | |
| 18 | 1706-193 | BUSHING,RECOIL-MACH | 1 | $20.95 | |
| 19 | 3611-886 | PLATE, CONSOLE,SWITCH | 1 | $27.95 | |
| 20 | 0630-077 | SWITCH,TETHER-N.O. ASSY. | 1 | $70.95 | |
| 21 | 0623-338 | SCREW,SELF TAP-PNHD #4 X 3/16 TYPE AB | 1 | $0.26 | |
| 22 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 23 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 24 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 25 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 26 | 0609-187 | SWITCH,TOGGLE-DPDT (THUMB/HAND WARMER) | 1 | $33.95 | |
| 27 | 0686-617 | HARNESS,MAIN-99 SNO PRO | 1 | $209.95 | |
| 28 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 29 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 |
