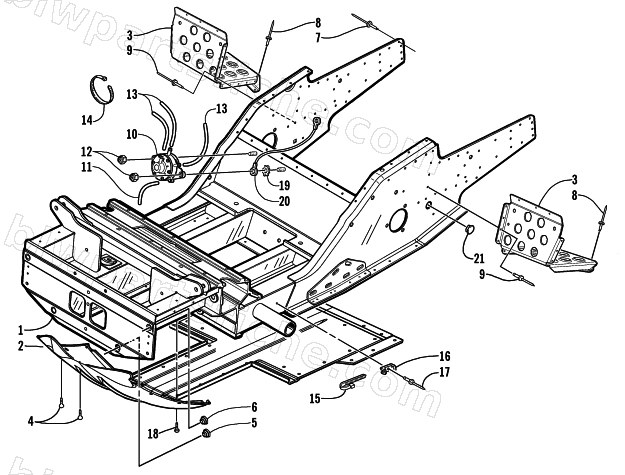

2001 Arctic Cat Z 440 SNO PRO () — FRONT FRAME AND FOOTREST ASSEMBLY
2001 Z 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-579 | CHASSIS, ASSY,01 440 Z SNO PRO(PTD) | 1 | $1,373.95 | |
| 2 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 3 | 1706-368 | FOOTREST, RH BLK (01 SNO PRO) | 1 | $145.95 | |
| 3 | 1706-369 | FOOTREST,LH BLK (01 SNO PRO) | 1 | $130.95 | |
| 4 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 7 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 8 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 0670-311 | FUEL PUMP-ASSY.(DF52-152) | 1 | $124.95 | |
| 11 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 13 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 14 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 15 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 16 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 17 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 20 | 0686-099 | HARNESS,ENGINE GROUND | 1 | $9.59 | |
| 21 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 |
