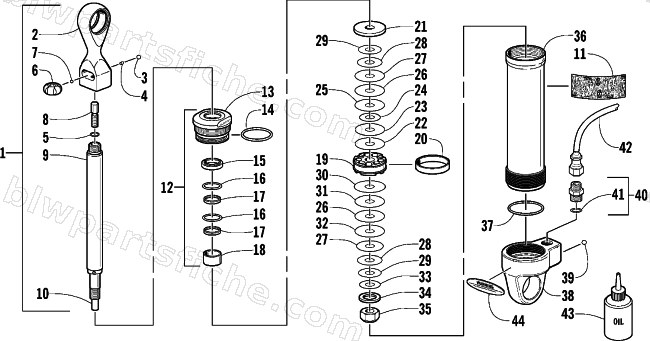

2001 Arctic Cat Z 440 SNO PRO () — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2001 Z 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-571 | SHOCK, REAR ARM (SNO CROSS) | 1 | $1,272.95 | |
| 1 | 0704-663 | SHAFT,CHROME-ASSY | 1 | $1,077.95 | |
| 2 | 1604-867 | EYE, TOP | 1 | $346.95 | |
| 3 | 1604-871 | SCREW,GRUB-ST ST-M4X0.7X3.0LG | 1 | $0.95 | |
| 4 | 1604-873 | SLUG,SILICONE | 1 | $2.95 | |
| 5 | 1604-869 | O-RING,REBOUND ADJUSTER-DRV0103 | 1 | $2.95 | |
| 6 | 1604-868 | KNOB,REBOUND AJDUSTER | 1 | $62.95 | |
| 7 | 1604-872 | BALL-ST ST-3.00 | 1 | $1.95 | |
| 8 | 1604-870 | ADJUSTER,REBOUND | 1 | $105.95 | |
| 9 | 1604-929 | SHAFT,CHROME-16.00X137.00 | 1 | $833.95 | |
| 10 | 1604-930 | ROD,ADJUSTER-109.50 D.A.L. | 1 | $26.95 | |
| 11 | 4611-261 | DECAL, ACT (SHEET) | 1 | $3.44 | |
| 12 | 0704-664 | COVER, SLIDING-ASSY | 1 | $334.95 | |
| 14 | 1604-881 | O-RING,COVER-DRV216 | 1 | $21.95 | |
| 15 | 1604-882 | SEAL,SCRAPER | 1 | $36.95 | |
| 16 | 1604-884 | O-RING,STEP SEAL-DRV0017 | 1 | $2.95 | |
| 17 | 1604-883 | SEAL,STEP | 1 | $52.95 | |
| 18 | 1604-885 | BUSHING-16.00 X 10.00 | 1 | $20.63 | |
| 19 | 1604-887 | PISTON,35.00MM | 1 | $575.95 | |
| 20 | 1604-888 | SLYDRING-35.00 | 1 | $63.95 | |
| 21 | 1604-886 | PLATE,STOP-33.00 X 3.00 | 1 | $61.95 | |
| 22 | 3603-058 | VALVE,SHOCK-33MM DIA X 0.20MM | 1 | $23.39 | |
| 23 | 3603-055 | VALVE,SHOCK-28MM DIA X 0.20MM | 1 | $23.39 | |
| 24 | 3603-032 | VALVE,SHOCK-22MM DIA X 0.1MM | 1 | $28.95 | |
| 25 | 3603-047 | VALVE,SHOCK-31MM DIA X 0.15MM | 1 | $23.39 | |
| 26 | 3603-067 | VALVE,SHOCK-31MM DIA X 0.25MM | 1 | $27.95 | |
| 27 | 3603-065 | VALVE,SHOCK-28MM DIA X 0.25MM | 1 | $28.95 | |
| 28 | 3603-064 | VALVE,SHOCK-26MM DIA X 0.25MM | 1 | $27.95 | |
| 29 | 3603-063 | VALVE,SHOCK-24MM DIA X 0.25MM | 1 | $28.95 | |
| 30 | 3603-078 | VALVE,SHOCK-33MM DIA X 0.30MM | 1 | $23.39 | |
| 31 | 3603-077 | VALVE,SHOCK-31MM DIA X 0.30MM | 1 | $23.39 | |
| 32 | 3603-066 | VALVE,SHOCK-29MM DIA X 0.25MM | 1 | $25.95 | |
| 33 | 3603-062 | VALVE,SHOCK-22MM DIA X 0.25MM | 1 | $24.95 | |
| 34 | 1604-966 | PLATE,TOP-21.0X10.0X2.0 THK | 1 | $38.95 | |
| 35 | 1604-890 | NUT, PISTON | 1 | $15.11 | |
| 36 | 1604-967 | TUBE | 1 | $204.95 | |
| 37 | 1604-892 | O-RING,STUDCAP/TUBE-DRV0222 | 1 | $15.11 | |
| 38 | 1604-893 | STUDCAP | 1 | $464.95 | |
| 40 | 1603-542 | CONNECTOR, 7/16-20 X 1/2-20 W/37 DEG FLA | 1 | $51.95 | |
| 41 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 42 | 1604-906 | HOSE,PARKER 5919-0606-5-5-5-18.5" | 1 | $196.95 | |
| 43 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 44 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 |
