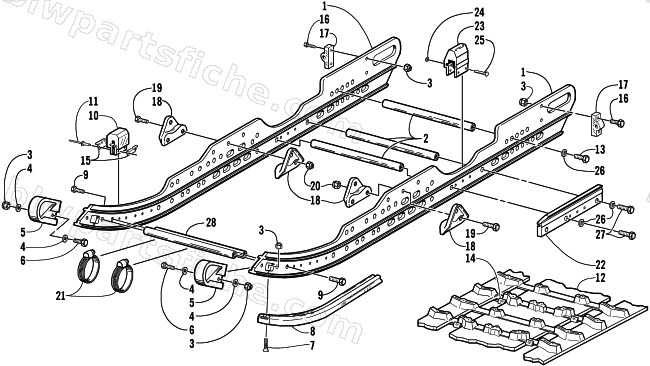

SLIDE RAIL AND TRACK ASSEMBLY
2001 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-522 | RAIL,FORMED-GRN (2604-050) | 1 | $241.95 | |
| 1 | 2604-050 | RAIL, 121"-FORMED-STAMPED (WIDE PROFILE) | 1 | $331.95 | |
| 2 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 3 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 4 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 5 | 1604-137 | NOSEPIECE,RAIL-BLUNT | 1 | $6.75 | |
| 6 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 7 | 0123-869 | SCRW,MACH,FH-1/4-20 X 1 1/4 | 1 | $0.95 | |
| 8 | 2604-257 | WEARSTRIP,SLIDE RAIL-BLK | 1 | $33.95 | |
| 9 | 8012-134 | SCREW,CAP-HHNLP 5/16-18X1.25 G5 Z&Y | 1 | $1.95 | |
| 10 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 11 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 12 | 1602-506 | TRACK,15X121X1.375, 3/5-12 B | 1 | $500.00 | |
| 12 | 1602-756 | TRACK,15 X121X.85-BUMP | 1 | $946.95 | |
| 13 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 14 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 15 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 16 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 17 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 18 | 2604-159 | BRACKET, MTG - FRONT ARM-PTD BLK | 1 | $30.95 | |
| 19 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 22 | 0704-520 | BRACE,RAIL-RH-GRN | 1 | $53.95 | |
| 22 | 0704-521 | BRACE,RAIL-LH-GRN | 1 | $40.95 | |
| 22 | 1604-488 | BRACE,RAIL-RH (99 PRO) | 1 | $60.95 | |
| 22 | 1604-489 | BRACE,RAIL-LH (99 PRO) | 1 | $60.95 | |
| 24 | 0623-773 | PUSHNUT - 3/16 DIA STUD | 1 | $1.09 | |
| 25 | 0623-772 | RIVET,SOLID-3/16X1.5 | 1 | $0.95 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 28 | 1604-109 | SADDLE,FRT ARM SHOCK RES.-MACH. | 1 | $120.95 |
