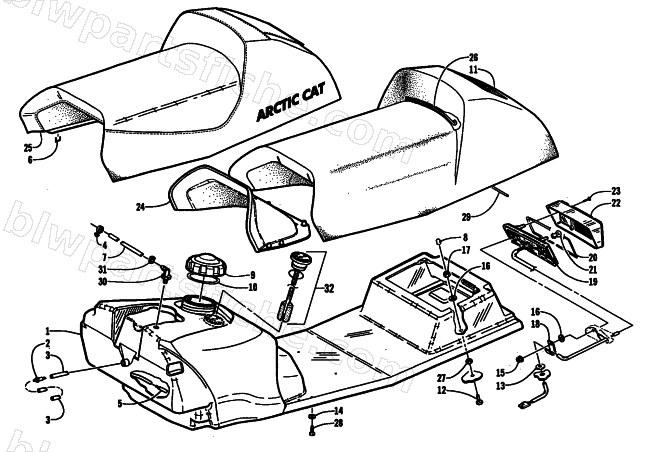

2001 Arctic Cat ZL 550 (ESR) — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2001 ZL 550 (ESR)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-498 | TANK, GAS-ASSY-01 Z370/Z440 | 1 | $468.95 | |
| 2 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 7 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 12 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 13 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 19 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 20 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 23 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 24 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 25 | 1706-830 | COVER, SEAT W/DECAL -'01 ZL'S-GREEN | 1 | $522.95 | |
| 26 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 27 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 30 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 31 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 |
