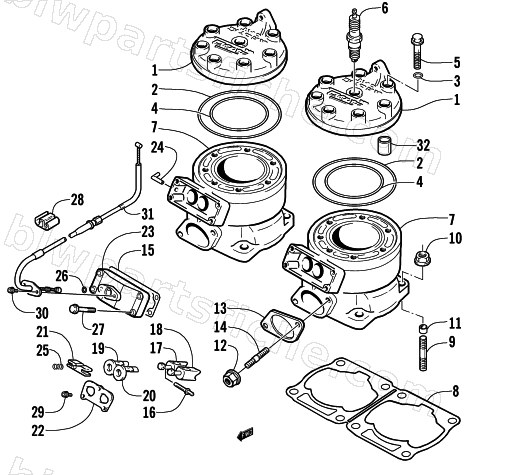

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — CYLINDER AND HEAD ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-804 | HEAD | 1 | $383.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-634 | O RING,440 L/C INNER | 1 | $30.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-802 | CYLINDER ( 440 L/C SNO PRO ) | 1 | $1,382.95 | |
| 8 | 3004-952 | GASKET, CYLINDER | 1 | $45.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 13 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 14 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 15 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 16 | 3005-284 | PIN,EXH.VALVE | 1 | $42.95 | |
| 17 | 3005-717 | VALVE,EXHAUST RH | 1 | $270.95 | |
| 18 | 3005-718 | VALVE,EXHAUST LH | 1 | $299.95 | |
| 19 | 3005-719 | GUIDE, EXHAUST VALVE RH | 1 | $238.95 | |
| 20 | 3005-720 | GUIDE, EXHAUST VALVE LH | 1 | $238.95 | |
| 21 | 3005-655 | STOPPER,EXHAUST VALVE | 1 | $53.95 | |
| 22 | 3005-585 | PLATE, GUIDE | 1 | $16.49 | |
| 23 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 24 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 25 | 3005-736 | SPRING | 1 | $6.34 | |
| 26 | 3005-651 | O RING,D:1.9,ID:5.7 | 1 | $3.95 | |
| 27 | 3007-381 | BOLT | 1 | $3.16 | |
| 28 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 | |
| 29 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 30 | 3007-433 | BOLT | 1 | $3.16 | |
| 31 | 3005-910 | CABLE, EXHAUST VALVE | 1 | $113.95 | |
| 32 | 3008-199 | PIN, KNOCK(ALIGNMENT) | 1 | $3.16 |
