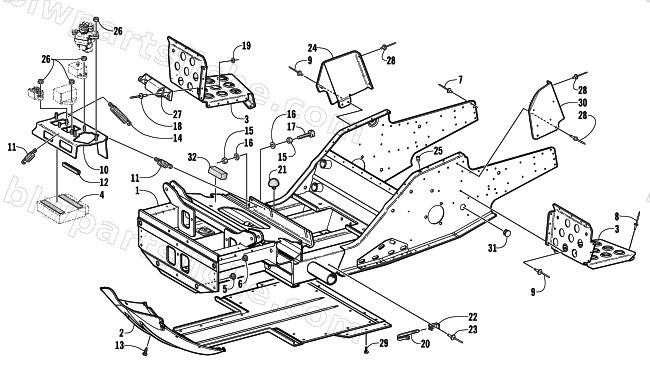

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — FRONT FRAME AND FOOTREST ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-564 | CHASSIS, ASSY | 1 | $1,217.95 | |
| 2 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 3 | 1706-368 | FOOTREST, RH BLK (01 SNO PRO) | 1 | $145.95 | |
| 3 | 1706-369 | FOOTREST,LH BLK (01 SNO PRO) | 1 | $130.95 | |
| 4 | 0623-960 | TAPE, CLEAR DUAL LOCK 12" | 1 | $17.95 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 7 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 8 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 9 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 10 | 1706-305 | PLATE,MTG-ELECTRICAL-ASSY | 1 | $61.95 | |
| 11 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 12 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 | |
| 13 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 14 | 0623-918 | SPRING,EXTENSION-5.6" | 1 | $15.95 | |
| 15 | 8042-486 | NUT,3/8-16 HEX-REG-GR5 Z&Y | 1 | $0.26 | |
| 16 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 17 | 0608-044 | BUMPER,TORQ.{2.600/2.700}-ENGINE-60 DU | 1 | $18.95 | |
| 18 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 19 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 20 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 21 | 1612-287 | BUMPER,MOLDED-RUBBER(CHASSIS) | 1 | $3.16 | |
| 22 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 23 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 24 | 0716-861 | BRKT,BRAKE DUCT MTG-W/ STUD | 1 | $69.95 | |
| 25 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 26 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 27 | 4639-549 | RIVET MOUNTED PLUG HOLDER | 1 | $9.95 | |
| 28 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 29 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 30 | 1606-976 | BRKT,CLOSE-OFF-AIR SILENCER(20 PRO) | 1 | $23.39 | |
| 31 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 | |
| 32 | 0617-291 | FOAM,BLOCK-SEAT (REAR) -'98 440 PRO | 1 | $3.95 |
