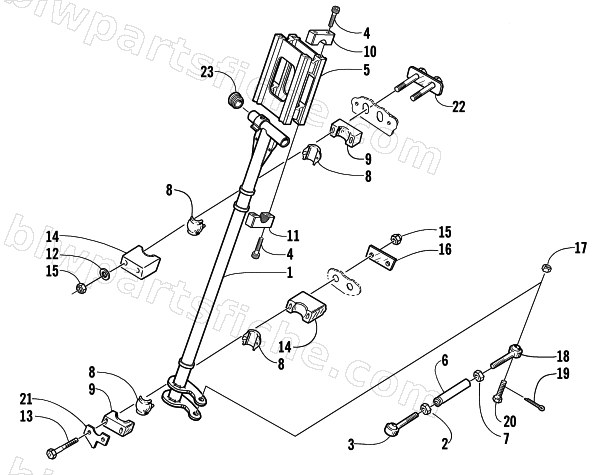

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — STEERING POST ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-343 | POST,STEERING-WELD'T (THIN WALL) | 1 | $316.95 | |
| 2 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 3 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 4 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 5 | 0605-491 | RISER,5.5 HANDLEBAR-MACH | 1 | $78.95 | |
| 5 | 0605-512 | RISER,6.5 HANDLEBAR-MACH | 1 | $89.95 | |
| 5 | 0605-513 | RISER,4.5 HANDLEBAR-MACH | 1 | $75.95 | |
| 5 | 0605-514 | RISER, HANDLE BAR-MACH- 2.5" | 1 | $70.95 | |
| 6 | 0605-296 | TUBE,TIE ROD-.625 X 14.00" (3/8-24) | 1 | $21.95 | |
| 7 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 8 | 0605-378 | BEARING,STEERING POST-(1.00" I.D.) | 1 | $2.95 | |
| 9 | 0705-257 | HOUSING,BEARING-LWR-MACH | 1 | $25.95 | |
| 10 | 0705-355 | CAP,STEERING ADJUSTER-TOP | 1 | $19.25 | |
| 11 | 0705-881 | CAP,STEERING ADJUSTER-PTD BLK | 1 | $38.95 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 0623-224 | SCREW,CAP -HH 5/16-18 X 3.75 ZN | 1 | $0.95 | |
| 14 | 0705-265 | HOUSING,BEARING-MACHINED | 1 | $25.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0605-385 | PLATE,BACKING-STEERING (NARROW) | 1 | $6.95 | |
| 17 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 18 | 0605-505 | ROD END-LH | 1 | $55.95 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 21 | 0605-372 | STOP,STEERING POST-LOWER | 1 | $12.35 | |
| 22 | 0605-427 | PLATE,BACKING-STEERING | 1 | $49.95 | |
| 23 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 |
