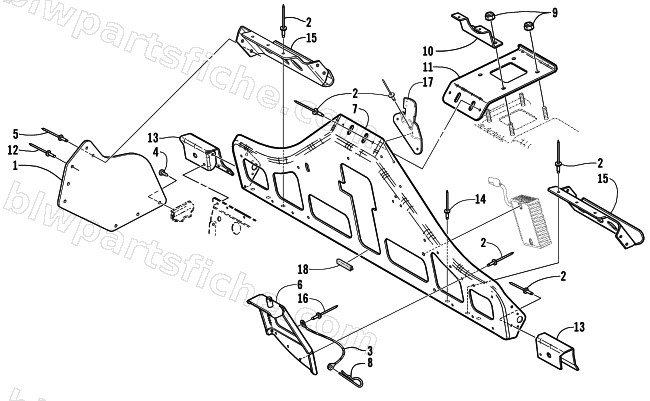

2001 Arctic Cat ZR 440 SNO PRO (CROSS COUNTRY) — STEERING SUPPORT ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-979 | SUPPORT,ANKLE(20 PRO) | 1 | $24.77 | |
| 2 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 3 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 4 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 5 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 6 | 1706-111 | BRKT,MTG-GUARD-PTD BLK (20 PRO) | 1 | $61.95 | |
| 7 | 0705-884 | SUPPORT,STEERING-PTD BLK | 1 | $156.95 | |
| 8 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 9 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 10 | 1606-490 | BRKT,MTG-CONSOLE ('98 440 PRO) | 1 | $20.95 | |
| 11 | 1606-428 | BRKT,GAS TANK SUPPORT-UPPER ('98 440 PRO | 1 | $26.95 | |
| 12 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 13 | 0705-882 | BRACE,STEERING SUPPORT-RH-PTD BLK | 1 | $24.95 | |
| 13 | 0705-883 | BRACE,STEERING SUPPORT-LH-PTD BLK | 1 | $30.95 | |
| 14 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 15 | 2606-296 | BRKT,TOE HOLD-RH ('01 440 PRO) | 1 | $79.95 | |
| 15 | 2606-297 | BRKT,TOE HOLD-LH (01 440 PRO) | 1 | $73.95 | |
| 16 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 17 | 1604-841 | BRKT,RETAINER-EASY ADJ RESERVOIR | 1 | $49.95 | |
| 18 | 0706-371 | TRIM,RACK-36 | 1 | $20.63 |
