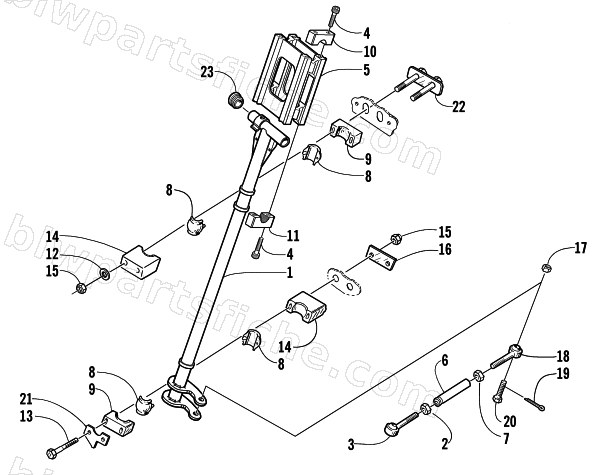

STEERING POST ASSEMBLY
2001 ZR 440 SNO PRO (CROSS COUNTRY - )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-343 | POST,STEERING-WELD'T (THIN WALL) | 1 | $316.95 | |
| 2 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 | |
| 3 | 1605-010 | ROD END,RH-3/8-24 (3/8 BORE) | 1 | $43.95 | |
| 4 | 0623-872 | SCREW,CAP-HSH-M8X1.25X30 GR 12.9 BLK&Z | 1 | $2.69 | |
| 5 | 0605-491 | RISER,5.5 HANDLEBAR-MACH | 1 | $78.95 | |
| 5 | 0605-512 | RISER,6.5 HANDLEBAR-MACH | 1 | $89.95 | |
| 5 | 0605-513 | RISER,4.5 HANDLEBAR-MACH | 1 | $75.95 | |
| 5 | 0605-514 | RISER, HANDLE BAR-MACH- 2.5" | 1 | $70.95 | |
| 6 | 0605-296 | TUBE,TIE ROD-.625 X 14.00" (3/8-24) | 1 | $21.95 | |
| 7 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 8 | 0605-378 | BEARING,STEERING POST-(1.00" I.D.) | 1 | $2.95 | |
| 9 | 0705-257 | HOUSING,BEARING-LWR-MACH | 1 | $25.95 | |
| 10 | 0705-355 | CAP,STEERING ADJUSTER-TOP | 1 | $19.25 | |
| 11 | 0705-881 | CAP,STEERING ADJUSTER-PTD BLK | 1 | $38.95 | |
| 12 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 13 | 0623-224 | SCREW,CAP -HH 5/16-18 X 3.75 ZN | 1 | $0.95 | |
| 14 | 0705-265 | HOUSING,BEARING-MACHINED | 1 | $25.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0605-385 | PLATE,BACKING-STEERING (NARROW) | 1 | $6.95 | |
| 17 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 18 | 0605-505 | ROD END-LH | 1 | $55.95 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 21 | 0605-372 | STOP,STEERING POST-LOWER | 1 | $12.35 | |
| 22 | 0605-427 | PLATE,BACKING-STEERING | 1 | $49.95 | |
| 23 | 1606-079 | CLOSURE,TUBE-7/8 X 16 GA-BLK | 1 | $4.26 |
