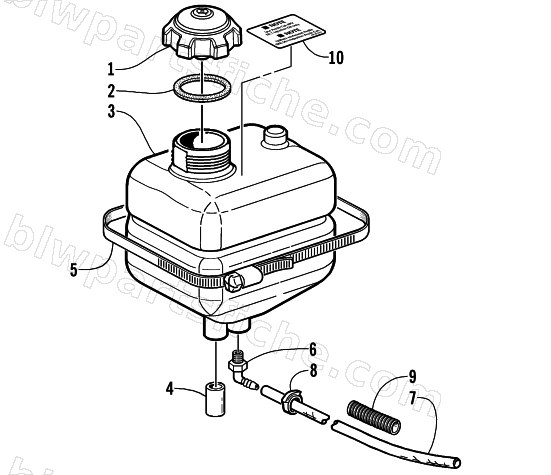

2001 Arctic Cat ZR 440 SNO PRO (SNO-CROSS) — OIL TANK ASSEMBLY
2001 ZR 440 SNO PRO (SNO-CROSS)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-871 | CAP,VENTED-GAS/OIL | 1 | $53.95 | |
| 2 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 3 | 0670-917 | TANK,OIL-('98 440 PRO) | 1 | $84.95 | |
| 4 | 0619-519 | SUPPORT,OIL TANK-MACH(99 PRO) | 1 | $6.95 | |
| 5 | 0623-743 | CLAMP,OIL TANK-7.75" ID ('98 440 PRO) | 1 | $18.95 | |
| 7 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 7 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 8 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 9 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 10 | 4611-224 | DECAL, OIL TANK - VEV | 1 | $15.11 |
