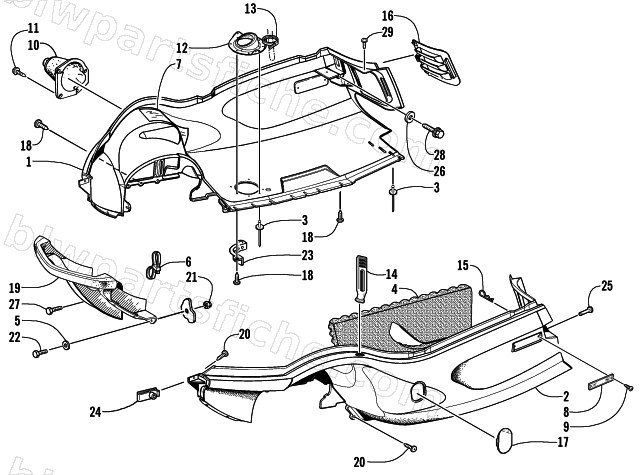

2001 Arctic Cat ZR 440 SNO PRO (SNO-CROSS - ) — BELLY PAN ASSEMBLY
2001 ZR 440 SNO PRO (SNO-CROSS - )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-280 | BELLY PAN, RH-ROUTED | 1 | $251.95 | |
| 2 | 1706-279 | BELLY PAN, LH-ROUTED | 1 | $263.95 | |
| 3 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 4 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 7 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 10 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 11 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 12 | 1612-267 | PLATE,EXHAUST OUTLET | 1 | $31.95 | |
| 13 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 14 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 15 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 16 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 16 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 17 | 2606-280 | PANEL, CLUTCH ACCESS-GRN | 1 | $20.95 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 2606-224 | BUMPER,FR ROUTED | 1 | $152.95 | |
| 20 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 23 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 24 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 25 | 0623-915 | PIN,CLEVIS-3/8X2.00"-ALUM | 1 | $6.95 | |
| 26 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 27 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 28 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 29 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 |
