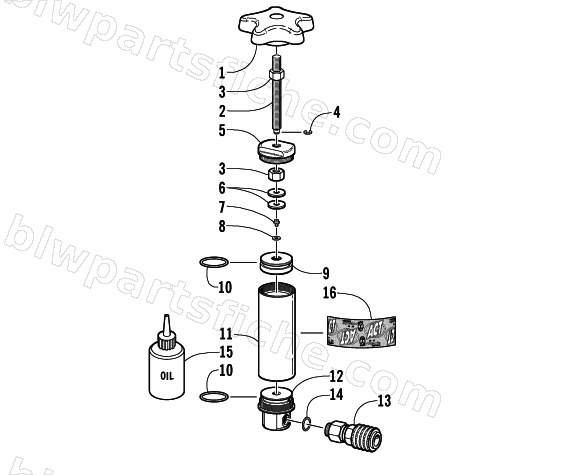

2001 Arctic Cat ZR 440 SNO PRO (SNO-CROSS - ) — EASY-ADJUST ASSEMBLY (Cross Country)
2001 ZR 440 SNO PRO (SNO-CROSS - )
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-650 | ADJUSTER,EASY ADJUST(CROSS COUNTRY) | 1 | $677.95 | |
| 1 | 1604-526 | KNOB, ADJUSTER,EASY ADJ. | 1 | $101.95 | |
| 2 | 1604-900 | STUD, ST ST-3/8-16 UNC | 1 | $128.95 | |
| 3 | 1604-896 | NUT,HEX-ST ST-3/8-16 UNC | 1 | $1.95 | |
| 4 | 1604-901 | RING,RETAINING-D1500-4 | 1 | $1.95 | |
| 5 | 1604-899 | COVER,EZ ADJUST | 1 | $199.95 | |
| 6 | 1604-902 | WASHER, 6.4 ID X 18OD X 1.6 THICK | 1 | $0.95 | |
| 7 | 1603-553 | SHCS, ST ST-M3X0.5 X 5.0 | 1 | $1.95 | |
| 8 | 1603-552 | SEAL,SELF CENTERING DOWTY-M3 | 1 | $6.34 | |
| 9 | 0704-740 | PISTON-ASSY | 1 | $213.95 | |
| 10 | 1604-881 | O-RING,COVER-DRV216 | 1 | $21.95 | |
| 11 | 1604-898 | TUBE | 1 | $532.95 | |
| 12 | 1604-903 | COVER,EZ ADJUST-CROSS COUNTRY | 1 | $181.95 | |
| 13 | 1604-911 | FITTING,PARKER FEMALE QUICK DISCONNECT | 1 | $230.95 | |
| 14 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 15 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 16 | 4611-261 | DECAL, ACT (SHEET) | 1 | $3.44 |
