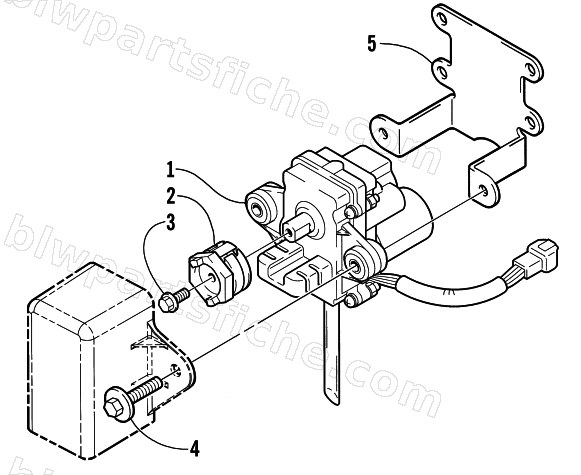

2001 Arctic Cat ZR 500 — SERVOMOTOR ASSEMBLY

2001 ZR 500

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	3007-702	MOTOR ASSY, EXHAUST VALVE	1	$726.95
2	3005-661	PULLEY,CONTROLLER	1	$70.95
3	0693-368	BOLT, GOV SPRING HOOK-M5X12	1	$3.16
4	3005-650	BOLT,6X25	1	$3.44
5	3005-750	BRACKET, EXHAUST VALVE MOTOR	1	$43.95
