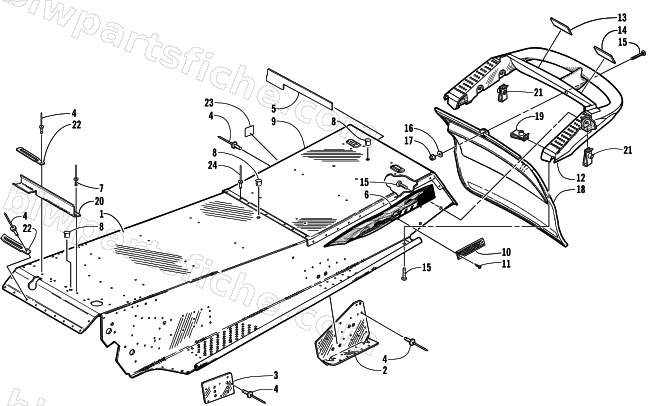

TUNNEL AND REAR BUMPER
2001 ZR 500
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-836 | TUNNEL, S/P ASSY-'00 Z/ZR-PTD BLK | 1 | $1,050.95 | |
| 2 | 1706-078 | BRKT, SUSPENSION-RH-PTD BLK | 1 | $133.95 | |
| 2 | 1706-079 | BRKT, SUSPENSION-LH-PTD BLK | 1 | $133.95 | |
| 3 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 4 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 5 | 2611-940 | DECAL,FASTRACK/ETT | 1 | $81.95 | |
| 6 | 3611-792 | DECAL,TUNNEL-CARB-RH | 1 | $66.95 | |
| 6 | 3611-793 | DECAL,TUNNEL-CARB-LH | 1 | $69.95 | |
| 7 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 8 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 9 | 1606-486 | PLATE, END-REAR TUNNEL-PTD | 1 | $113.95 | |
| 10 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 11 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 12 | 1606-200 | BUMPER,REAR-Z,ZL,ZR | 1 | $142.95 | |
| 13 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 14 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 15 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 1606-202 | SNOWFLAP-BLK (99 PROD) | 1 | $96.95 | |
| 18 | 1606-507 | SNOWFLAP, REV. | 1 | $74.95 | |
| 19 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 20 | 0607-488 | BRCKT, MAIN HARNESS PROTECTOR | 1 | $16.49 | |
| 21 | 0623-771 | NUT,U-1/4-20 (.50 X .25 PANEL) | 1 | $1.64 | |
| 22 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 23 | 0411-053 | DECAL,TUBE-CE | 1 | $100.95 | |
| 24 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
