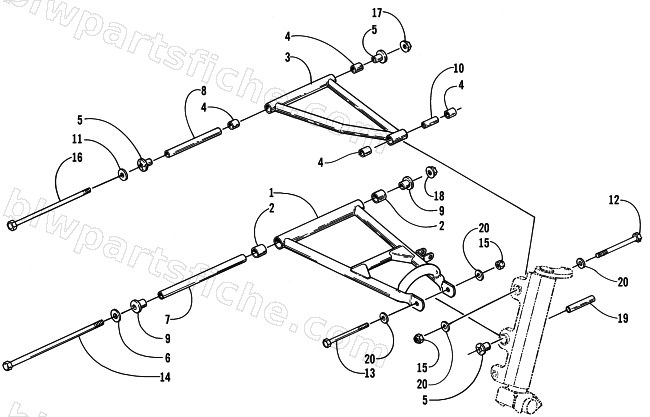

A-ARM ASSEMBLY
2001 ZR 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-644 | A-ARM,LOWER RH-FABR(2000 ZR) | 1 | $227.95 | |
| 1 | 0703-645 | A-ARM,LOWER LH-FABR(2000 ZR) | 1 | $227.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-707 | A-ARM,UPPER-FABR(2000 ZR) | 1 | $161.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 1603-244 | AXLE,PWD METAL(0603-061) | 1 | $2.06 | |
| 6 | 0623-663 | WASHER,FLAT 1.00X.453X.164 Z&Y | 1 | $3.57 | |
| 7 | 0603-693 | TUBE,AXLE-LOWER PIVOT | 1 | $22.01 | |
| 8 | 0603-692 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $17.87 | |
| 9 | 1603-397 | AXLE,NON-SERRATED-LOWER ARM PIVOT | 1 | $3.02 | |
| 10 | 0603-864 | TUBE, AXLE | 1 | $17.87 | |
| 11 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 12 | 8013-233 | SCREW,CAP-HH 3/8-16 X 3.50 GR8 Z&Y | 1 | $3.16 | |
| 13 | 0623-414 | SCREW,CAP HH 3/8-16 X 4.75 GR8 Z&Y | 1 | $4.68 | |
| 15 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 18 | 0623-660 | NUT,CROWNLOCK FLANGE 7/16-14 UNC Z&Y | 1 | $1.95 | |
| 19 | 0603-639 | TUBE,AXLE-LOWER ARM | 1 | $5.09 | |
| 20 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
