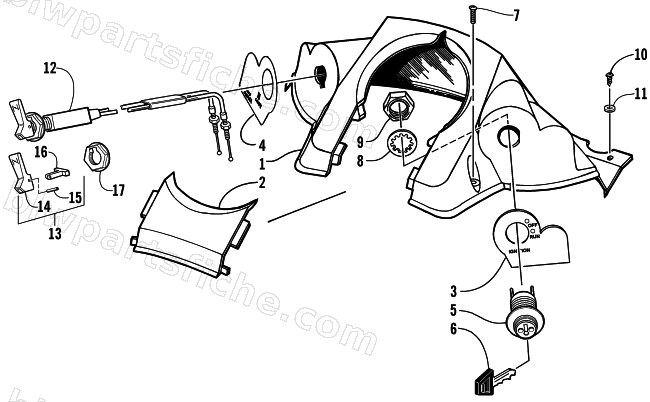

2001 Arctic Cat ZR 800 () — CONSOLE AND SWITCH ASSEMBLY
2001 ZR 800 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-231 | CONSOLE, CARB (800 LE) | 1 | $41.95 | |
| 1 | 2606-230 | CONSOLE, CARB | 1 | $39.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 3 | 2611-678 | DECAL,CONSOLE SWITCH-RH | 1 | $42.95 | |
| 4 | 2611-867 | DECAL,CONSOLE-LH (CHOKE) | 1 | $42.95 | |
| 5 | 0609-256 | SWITCH,IGNITION-NORM. OPEN | 1 | $71.95 | |
| 6 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 7 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 9 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 10 | 1604-432 | BRKT,RETAINER-EASY ADJ RESERVOIR | 1 | $30.95 | |
| 11 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 12 | 0687-136 | CABLE,CHOKE-LONG PULL TWIN | 1 | $109.95 | |
| 13 | 1639-835 | KIT, CHOKE LEVER/LONG PULL | 1 | $20.63 | |
| 17 | 0687-132 | NUT,PLASTIC-LP CHOKE | 1 | $5.65 | |
| 18 | 0704-646 | ADJUSTER,FRT. ARM-EASY ADJUST,1.125 FLAT | 1 | $575.95 | |
| 19 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 1606-364 | BRKT,MTG-EASY ADJ. RESERVOIR ('98 440 ZR | 1 | $52.95 | |
| 22 | 1606-365 | PLATE,BACKING-EASY ADJ. MTG BRKT ('98 44 | 1 | $12.95 | |
| 23 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 24 | 8051-212 | WASHER,SPR LOCK-1/4 .252X.487X.062 Z&Y | 1 | $0.12 | |
| 25 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 26 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 |
