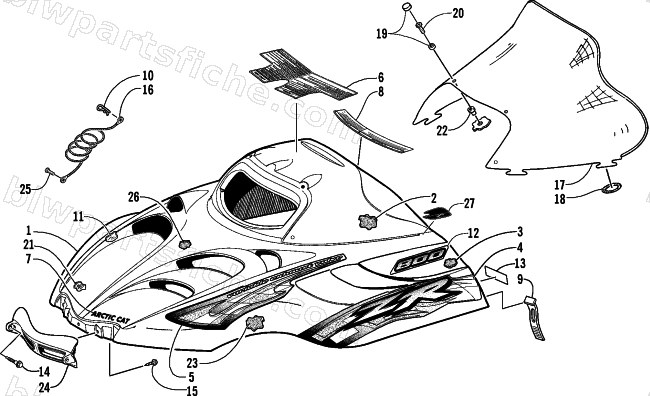

HOOD AND WINDSHIELD ASSEMBLY
2001 ZR 800 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-031 | HOOD, W/O DECAL-02 ZR 800 | 1 | $1,168.95 | |
| 1 | 0718-963 | HOOD, W/ DECAL-01 ZR 800 | 1 | $1,248.95 | |
| 3 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 3 | 0617-323 | FOAM,HOOD-UPPER LH | 1 | $53.95 | |
| 4 | 3611-784 | DECAL,HOOD-LOWER RH | 1 | $136.95 | |
| 4 | 3611-785 | DECAL,HOOD-LOWER LH | 1 | $81.95 | |
| 5 | 3611-780 | DECAL,HOOD-UPPER RH | 1 | $166.95 | |
| 5 | 3611-781 | DECAL,HOOD-UPPER LH | 1 | $143.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 11 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 12 | 3611-834 | DECAL,HOOD-800 | 1 | $33.95 | |
| 13 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 17 | 1606-696 | WINDSHIELD,FORMED-SMOKE(2000 ZR) | 1 | $165.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 23 | 0617-327 | FOAM,HOOD-REAR LH | 1 | $29.95 | |
| 26 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 27 | 4611-334 | DECAL,HOOD PAD-ACT-RH BLK | 1 | $8.95 | |
| 27 | 4611-335 | DECAL,HOOD PAD-ACT-LH BLK | 1 | $8.95 |
