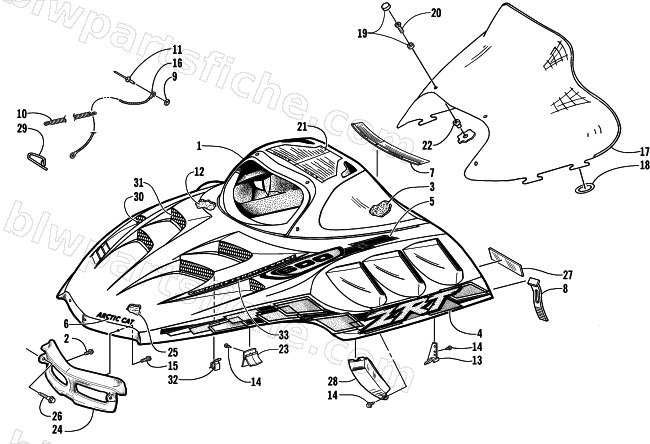

HOOD AND WINDSHIELD ASSEMBLY
2001 ZRT 600 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-017 | HOOD, W/O DECAL 01 ZRT 600 | 1 | $1,515.95 | |
| 1 | 1718-019 | HOOD, W/ DECAL - 01 ZRT 600 | 1 | $2,419.95 | |
| 1 | 0718-958 | HOOD, W/O DECALS | 1 | $2,314.95 | |
| 1 | 1718-020 | HOOD, W/ DECAL - 01 ZRT 600 L/E | 1 | $1,870.95 | |
| 2 | 0623-791 | SCREW, HI-LO #10 X 0.75 HWH | 1 | $0.55 | |
| 3 | 0717-112 | FOAM, HOOD-UPR RH | 1 | $16.95 | |
| 3 | 0717-113 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 4 | 3611-767 | DECAL, HOOD, LWR, RH | 1 | $78.95 | |
| 4 | 3611-768 | DECAL, HOOD, LWR, LH | 1 | $82.95 | |
| 4 | 3611-952 | DECAL, HOOD,-LOWER RH 600/800 | 1 | $64.95 | |
| 4 | 3611-953 | DECAL, HOOD,-LOWER LH 600/800 | 1 | $66.95 | |
| 5 | 3611-771 | DECAL, HOOD, UPPER, RH | 1 | $84.95 | |
| 5 | 3611-772 | DECAL, HOOD, UPPER, LH | 1 | $84.95 | |
| 6 | 3611-455 | DECAL, ARCTIC CAT-CAT GREEN (STRAIGHT) | 1 | $11.95 | |
| 6 | 3611-744 | DECAL, ARCTIC, CAT,(BLACK) | 1 | $14.95 | |
| 7 | 4611-010 | DECAL, CAUTION -ENG/BTRY/FUEL | 1 | $166.95 | |
| 8 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 9 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 10 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 12 | 0717-136 | FOAM,HOOD-RH | 1 | $18.95 | |
| 12 | 0717-137 | FOAM,HOOD-LH | 1 | $15.95 | |
| 13 | 1606-321 | GUIDE, HOOD | 1 | $3.44 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 0623-790 | SCREW, HI-LO #10 X 1.00 HWH | 1 | $0.85 | |
| 16 | 0616-614 | CABLE,HOOD-36.5 (.20 EYELET BOTH ENDS) | 1 | $15.11 | |
| 17 | 1606-323 | WINDSHIELD - FORMED | 1 | $148.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 3611-360 | DECAL, WARNING-GENL & BRAKE | 1 | $162.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 1606-622 | GUIDE, HOOD (FRONT) | 1 | $2.95 | |
| 24 | 1606-324 | HINGE, HOOD | 1 | $82.95 | |
| 25 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 27 | 2611-769 | DECAL,WARNING-SEATING CAP.-GLOSSY | 1 | $16.95 | |
| 28 | 1606-633 | PLUG,VENT-LH | 1 | $2.95 | |
| 29 | 0115-528 | CABLE HOOK | 1 | $13.95 | |
| 30 | 1606-580 | SCREEN, VENT - HOOD - RH- BLK '99 | 1 | $19.95 | |
| 30 | 1606-581 | SCREEN, VENT - HOOD - LH- BLK '99 | 1 | $19.95 | |
| 31 | 1606-584 | SCREEN, VENT - HOOD - CTR/R.H. - BLK '99 | 1 | $19.95 | |
| 31 | 1606-607 | SCREEN, VENT - HOOD -CTR/L.H.- BLK | 1 | $52.95 | |
| 32 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 33 | 3611-857 | DECAL, HOOD,V.E.V. | 1 | $29.95 | |
| 33 | 3611-954 | DECAL, HOOD,-V.E.V. | 1 | $31.95 |
