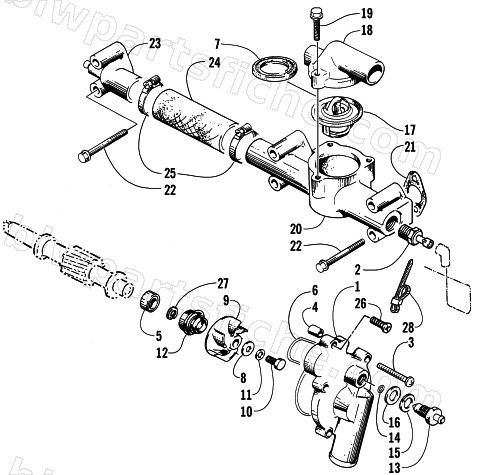

WATER PUMP/MANIFOLD
2001 ZRT 600 LE
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-519 | CASE, WATER PUMP | 1 | $283.95 | |
| 2 | 0630-140 | SWITCH,TEMP-L/C 220F | 1 | $58.95 | |
| 3 | 3007-555 | SCREW | 1 | $2.47 | |
| 4 | 3005-206 | PIN (H:10),DOWEL | 1 | $3.30 | |
| 5 | 3007-431 | OIL SEAL-10X22X6 | 1 | $16.49 | |
| 6 | 3003-372 | GASKET,O-RING PUMP | 1 | $17.87 | |
| 7 | 3003-495 | GASKET,THERMOSTAT | 1 | $15.11 | |
| 8 | 3003-432 | WASHER,6MM | 1 | $3.85 | |
| 9 | 3005-697 | IMPELLER,WATER PUMP | 1 | $54.95 | |
| 10 | 3003-426 | BOLT, 6 X 13 YEL CHROM. | 1 | $2.75 | |
| 11 | 3003-431 | WASHER,6MM | 1 | $3.44 | |
| 12 | 3005-909 | SEAL, MECHANICAL WATER PUMP | 1 | $66.95 | |
| 13 | 3003-618 | DRAIN,WATER | 1 | $47.95 | |
| 14 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 15 | 3004-472 | WASHER, LOCK,12MM | 1 | $3.85 | |
| 16 | 3007-716 | WASHER,12MM | 1 | $3.16 | |
| 17 | 3004-964 | THERMOSTAT, WATER | 1 | $106.95 | |
| 18 | 3003-924 | CAP,THERMOSTAT | 1 | $79.95 | |
| 19 | 3007-380 | BOLT | 1 | $3.16 | |
| 20 | 3004-807 | MANIFOLD THERMOSTAT | 1 | $515.95 | |
| 21 | 3004-260 | GASKET, THERMOSTAT MANIFOLD | 1 | $17.87 | |
| 22 | 3007-386 | BOLT | 1 | $3.16 | |
| 23 | 3004-214 | MANIFOLD, WATER OUTLET | 1 | $102.95 | |
| 24 | 3004-187 | HOSE, WATER OUTLET | 1 | $22.95 | |
| 25 | 3004-786 | CLAMP,M38 | 1 | $27.95 | |
| 26 | 3003-702 | SCREW,M6 X 10 | 1 | $2.75 | |
| 27 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 | |
| 28 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 |
