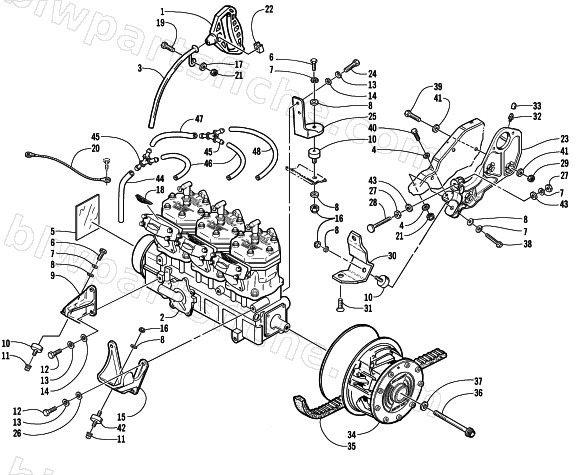

2001 Arctic Cat ZRT 600 — ENGINE AND RELATED PARTS
2001 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0708-441 | GUIDE,RECOIL ROPE-PTD BLK | 1 | $56.95 | |
| 4 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 5 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 6 | 8002-222 | SCREW,CAP-HH 3/8-16 X1.00 G5 Z&Y | 1 | $0.95 | |
| 7 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 8 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 9 | 0708-010 | BRKT,ENG MTG-RH FRONT-MACH ('99 600 ZRT) | 1 | $40.95 | |
| 10 | 0608-251 | MOUNT,ENG-60 DURO (FULL WASHER) | 1 | $26.95 | |
| 11 | 0623-699 | INSERT,THREADED-.375 X 16 (ALS4-616-312) | 1 | $3.02 | |
| 12 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 13 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 14 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 15 | 0708-011 | BRKT,ENG MTG-LH FRONT-MACH ('99 600 ZRT) | 1 | $110.95 | |
| 16 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 3611-967 | DECAL, APV | 1 | $19.95 | |
| 19 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 20 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 23 | 0708-144 | BRKT, BEARING SUPPORT ASSY | 1 | $125.95 | |
| 24 | 8012-131 | SCREW,CAP-HHNLP 5/16-18X.875 G5 Z&Y | 1 | $0.45 | |
| 25 | 0708-020 | BRKT,ENG MTG-RH REAR-MACH ('99 600 ZRT) | 1 | $50.95 | |
| 26 | 8050-252 | WASHER,FLAT- 5/16 X .875 X .063 Z&Y | 1 | $0.68 | |
| 27 | 8042-516 | NUT,3/8-24 HEX-REG-G5 Z&Y | 1 | $0.40 | |
| 28 | 0608-299 | BUMPER,TORQUE-ENGINE (2000) | 1 | $15.95 | |
| 29 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 30 | 0708-021 | BRKT,ENG MTG-LH REAR-MACH ('99 600 ZRT) | 1 | $110.95 | |
| 31 | 0623-095 | SCREW,MACH-HSFH 1/2-13X1.00 Z&Y | 1 | $6.47 | |
| 32 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 33 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 34 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 35 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 36 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 37 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 39 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 40 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 41 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 42 | 0608-250 | MOUNT,ENG-60 DURO (DOUBLE MALE) | 1 | $27.95 | |
| 43 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 44 | 0610-445 | HOSE, DRAIN-VEV-12" | 1 | $17.95 | |
| 45 | 0670-875 | FITTING,'Y' (1/2 X 1/2 X 1/2) | 1 | $19.25 | |
| 46 | 0610-429 | H0SE, DRAIN,VEV, TAPERED 5.5" | 1 | $18.95 | |
| 47 | 0610-446 | HOSE, DRAIN-VEV-5.5" | 1 | $26.95 | |
| 48 | 0610-447 | HOSE, DRAIN,TAPERED-VEV-11" | 1 | $17.87 |
