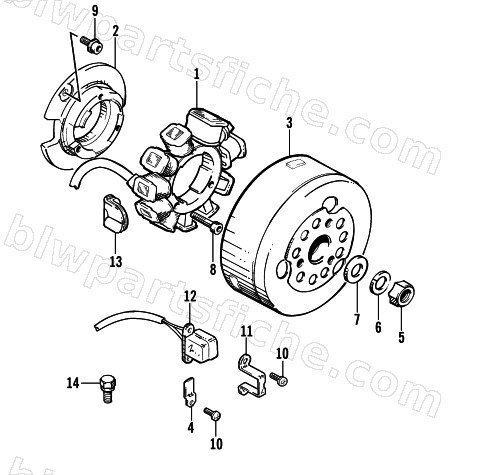

2001 Arctic Cat ZRT 600 — MAGNETO
2001 ZRT 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-793 | STATOR | 1 | $1,147.95 | |
| 2 | 3005-842 | BASE, STATOR | 1 | $143.95 | |
| 3 | 3005-841 | FLYWHEEL ASSY. | 1 | $1,387.95 | |
| 4 | 3002-317 | CLAMP,M3 | 1 | $2.95 | |
| 5 | 3007-556 | NUT | 1 | $3.95 | |
| 6 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 7 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 8 | 3007-687 | BOLT,MAG STATOR 6X30 | 1 | $4.68 | |
| 9 | 3007-449 | BOLT | 1 | $3.16 | |
| 10 | 3007-553 | SCREW | 1 | $2.33 | |
| 11 | 3003-972 | CLAMP | 1 | $24.77 | |
| 12 | 3006-453 | SENSOR,IGNITION | 1 | $279.95 | |
| 13 | 3008-034 | GROMMET, LEAD WIRE,M10 | 1 | $17.87 | |
| 14 | 3007-371 | BOLT (6X12) | 1 | $3.16 |
