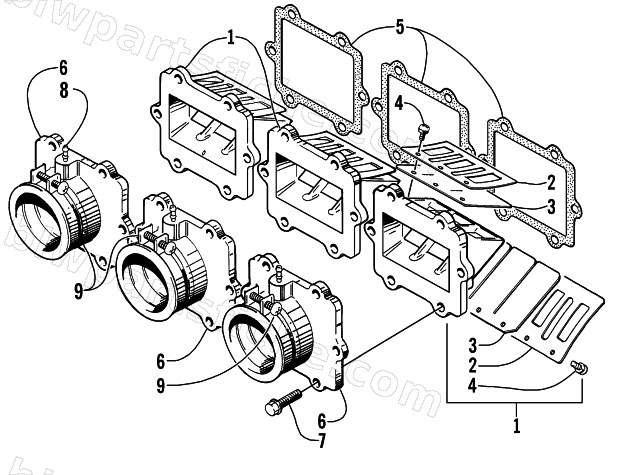

REED VALVE ASSEMBLY
2001 ZRT 800
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-148 | VALVE ASSY, REED | 1 | $260.95 | |
| 2 | 3004-251 | STOPPER, REED VALVE | 1 | $24.95 | |
| 3 | 3004-177 | VALVE, REED | 1 | $27.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3005-419 | PIPE, INTAKE | 1 | $197.95 | |
| 7 | 3007-380 | BOLT | 1 | $3.16 | |
| 8 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 9 | 3004-463 | CLAMP,M58 | 1 | $34.95 |
