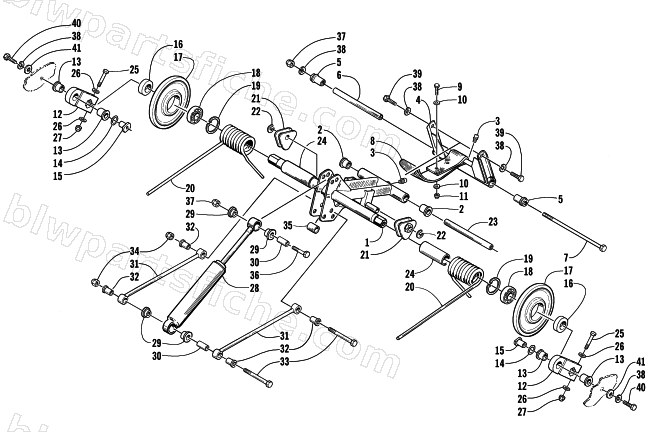

REAR SUSPENSION REAR ARM ASSEMBLY
2002 4-STROKE TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-631 | ARM, IDLER - BLACK FABR | 1 | $556.95 | |
| 2 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 3 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 4 | 0704-687 | ARM,REAR - PTD BLK (02 PROD) | 1 | $148.95 | |
| 5 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 7 | 0623-907 | SCREW, CAP-HH 3/8-16X10.0 GR5 Z&Y | 1 | $4.26 | |
| 8 | 1604-298 | STRAP,LIMITER-REAR | 1 | $56.95 | |
| 9 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 10 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 11 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 12 | 0704-981 | OFFSET,ARM (HEX)-ASSY | 1 | $53.95 | |
| 13 | 1604-202 | BUSHING,FLARED-BRONZE{.750 ID} | 1 | $15.11 | |
| 14 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 15 | 1604-181 | AXLE,OFFSET ARM-POWDER METAL | 1 | $14.95 | |
| 16 | 1604-507 | SPACER,OFFSET ARM-HEX SHAFT | 1 | $12.35 | |
| 17 | 1604-690 | WHEEL,IDL-5.63 W/1" ID(NO INSR) | 1 | $53.95 | |
| 18 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 19 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 20 | 0704-944 | SPRING,SUSP.-RH (.452)-PTD BLK | 1 | $110.95 | |
| 20 | 0704-945 | SPRING,SUSP.-LH (.452)-PTD BLK | 1 | $110.95 | |
| 20 | 0704-886 | SPRING,SUSPENSION-RH-PTD BLK | 1 | $62.95 | |
| 20 | 0704-887 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $62.95 | |
| 21 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 21 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 22 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 23 | 1604-208 | AXLE,ALUM-.625 X 6.817 | 1 | $42.95 | |
| 24 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 25 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 26 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 27 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 28 | 1604-479 | SHOCK ABSORBER-REAR ARM(FX) | 1 | $379.95 | |
| 29 | 0604-321 | BUSHING,PLASTIC,SHOCK ABSORBER | 1 | $6.75 | |
| 30 | 1604-185 | SLEEVE,SHOCK ABSORBER | 1 | $29.95 | |
| 31 | 0704-603 | LINK,REAR SHOCK-PTD BLK | 1 | $42.95 | |
| 32 | 1604-498 | AXLE,LINK-FLANGED(99 PRO) | 1 | $15.11 | |
| 33 | 8002-233 | SCREW,CAP-HH 3/8-16 X3.50 G5 Z&Y | 1 | $1.78 | |
| 34 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 35 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 36 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 37 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 38 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 39 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 40 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 41 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 |
