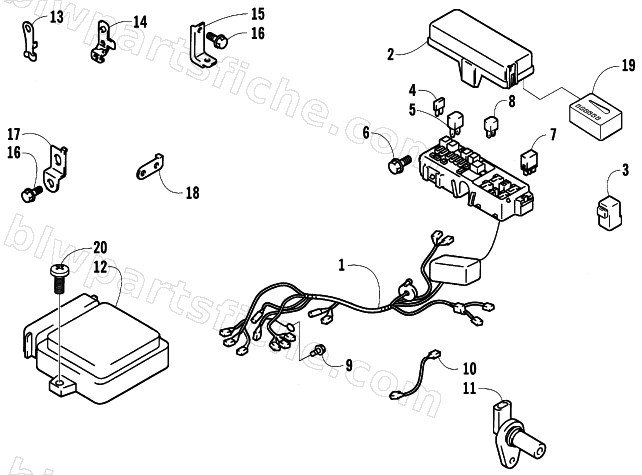

ELECTRICAL
2002 4-STROKE TOURING ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-283 | HARNESS ASSY,WRG NO.5 '02 660 L/C | 1 | $1,314.95 | |
| 2 | 3006-288 | COVER,FUSE BOX '02 660 L/C | 1 | $27.95 | |
| 3 | 3006-293 | RELAY ASSY, MAIN & FUEL '02 660 L/C | 1 | $183.95 | |
| 4 | 3006-368 | FUSE,15 AMP 660 L/C | 1 | $6.34 | |
| 4 | 3006-369 | FUSE,30 AMP 660 L/C | 1 | $8.21 | |
| 5 | 3006-370 | FUSE,80A 660L/C | 1 | $38.95 | |
| 6 | 3006-109 | BOLT,6X10 '02 660 L/C | 1 | $3.95 | |
| 7 | 0630-286 | RELAY,SPST-4P 12V/35A | 1 | $27.95 | |
| 9 | 3007-407 | BOLT,GROUND | 1 | $3.16 | |
| 10 | 3006-289 | WIRE,OIL P SW '02 660 L/C | 1 | $33.95 | |
| 11 | 3006-279 | SENSOR ASSY, CAM POSITION '02 660 L/C | 1 | $355.95 | |
| 12 | 3006-282 | CONTROLLER ASSY,EPI '02 660 L/C | 1 | $2,561.95 | |
| 13 | 3006-290 | CLAMP,OIL P SW '02 660 L/C | 1 | $17.87 | |
| 14 | 3006-287 | BRACKET,ENGINE HARN '02 660 L/C | 1 | $19.95 | |
| 15 | 3006-286 | BRACKET,DLI COIL '02 660 L/C | 1 | $17.87 | |
| 16 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 17 | 3006-285 | BRACKET,ENGINE HARN '02 660 L/C | 1 | $20.95 | |
| 18 | 3006-284 | BRACKET,ENGINE HARN '02 660 L/C | 1 | $20.63 | |
| 19 | 0617-429 | FOAM, FUSE BOX-4 STROKE | 1 | $2.95 | |
| 20 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 |
