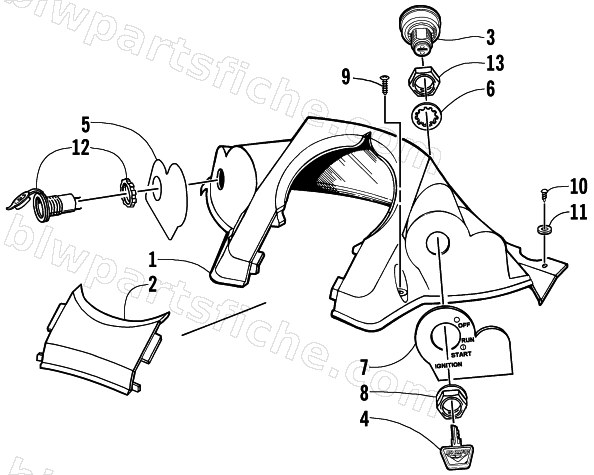

CONSOLE AND SWITCH ASSEMBLY
2002 4-STROKE TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-283 | CONSOLE,IGN,EFI-BLACK | 1 | $76.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 3 | 0609-082 | SWITCH,IGNITION | 1 | $54.95 | |
| 4 | 0609-412 | KEY, IGN. SWITCH | 1 | $20.63 | |
| 5 | 4611-805 | DECAL, CONSOLE-LH-BLK-ACC | 1 | $18.95 | |
| 6 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 8 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 9 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 10 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 11 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 12 | 1639-371 | KIT, OUTLET 12V ACCESSORY | 1 | $47.95 | |
| 13 | 0123-900 | NUT,IGNITION | 1 | $1.95 |
