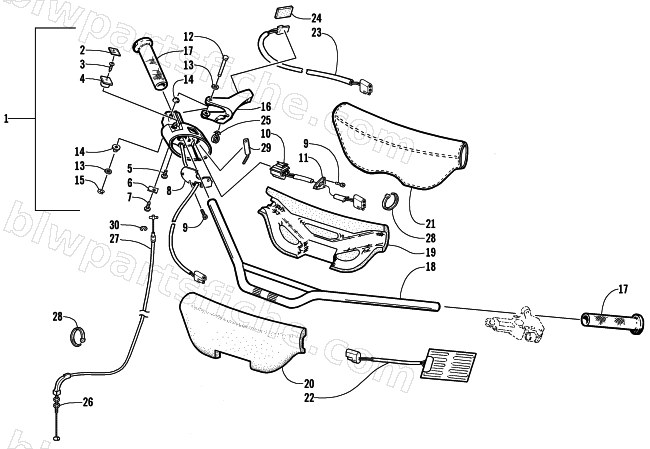

2002 Arctic Cat 4-STROKE TRAIL — HANDLEBAR AND CONTROLS
2002 4-STROKE TRAIL
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-516 | CONTROL,TH-NC 2W SC W/ HI/LO | 1 | $366.95 | |
| 2 | 0609-121 | DECAL,MARK PLATE | 1 | $4.95 | |
| 3 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 4 | 0609-120 | KNOB,EMER STOP SWITCH | 1 | $15.11 | |
| 5 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 7 | 0609-321 | SCREW, SELF-TAP-PH-3X8 | 1 | $2.95 | |
| 8 | 0609-316 | COVER, SWITCH-THROTTLE | 1 | $12.95 | |
| 9 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 10 | 0609-382 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $71.95 | |
| 11 | 0609-378 | PLATE, SWITCH-H/W&T/W RETAINER | 1 | $11.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 15 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 16 | 0609-515 | LEVER,TH-40MM SC | 1 | $29.95 | |
| 17 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 18 | 0705-360 | HANDLEBAR-PTD BLK | 1 | $61.95 | |
| 21 | 0705-285 | WRAP,HANDLEBAR-W/EMBOSS | 1 | $32.95 | |
| 22 | 0609-558 | ELEMENT, HW-HI/LO (15VDC) | 1 | $86.95 | |
| 23 | 0609-557 | ELEMENT, THUMBWARMER-H/L (15VDC) | 1 | $74.95 | |
| 24 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 25 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 26 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 27 | 0687-133 | CABLE,THROTTLE-SINGLE W/O OIL | 1 | $74.95 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 | |
| 30 | 0123-231 | RING RETAINING | 1 | $1.37 |
