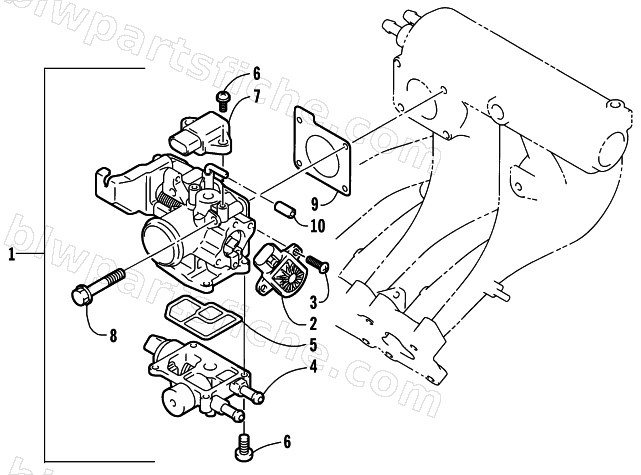

2002 Arctic Cat 4-STROKE TRAIL — THROTTLE BODY ASSEMBLY
2002 4-STROKE TRAIL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-207 | BODY ASSY,THROTTLE '02 660 L/C | 1 | $2,927.95 | |
| 2 | 3007-679 | SENSOR,THROTTLE POSITION-02-660L/C | 1 | $607.95 | |
| 3 | 3006-210 | SCREW, '02 660 L/C | 1 | $5.95 | |
| 4 | 3006-236 | VALVE,ISC '02 660 L/C | 1 | $733.95 | |
| 5 | 3006-215 | GASKET,ISC VALVE '02 660 L/C | 1 | $30.95 | |
| 6 | 3006-211 | SCREW,5X14 '02 660 L/C | 1 | $5.95 | |
| 7 | 3006-239 | SENSOR,PRESSURE '02 660 L/C | 1 | $868.95 | |
| 8 | 3007-386 | BOLT | 1 | $3.16 | |
| 9 | 3006-209 | GASKET,THROTTLE BODY '02 660 L/C | 1 | $20.95 | |
| 10 | 3006-119 | PLUG,OD:8 '02 660 L/C | 1 | $7.95 |
