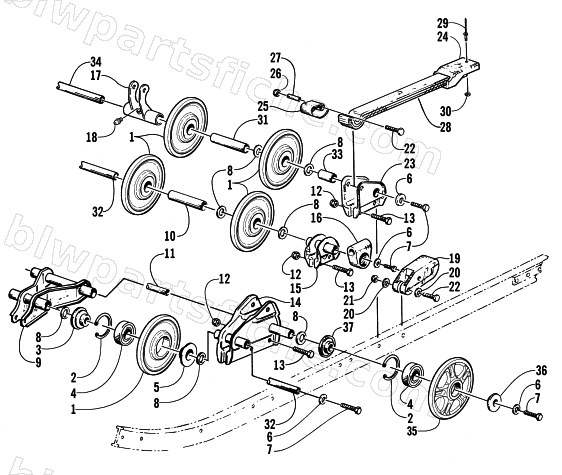

REAR SUSPENSION AXLE ASSEMBLY
2002 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0114-240 | WHEEL,IDLER | 1 | $53.95 | |
| 2 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 3 | 1604-772 | INSERT,5/8 BORE X 2 OD (SHORT) | 1 | $5.51 | |
| 4 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 5 | 1604-773 | INSERT,5/8 BORE X 1.580 OD | 1 | $5.51 | |
| 6 | 0123-260 | WSHR,.343X1 1/8X.120TH Z&Y | 1 | $1.50 | |
| 7 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 8 | 0123-439 | WSHR,FLAT 21/32X1-1/8X.048 Z&Y | 1 | $0.40 | |
| 9 | 1704-682 | BRKT,FRONT SHOCK-PTD BLK | 1 | $268.95 | |
| 10 | 0604-942 | TUBE,SPACER,AUX-WHEEL | 1 | $18.95 | |
| 11 | 0604-979 | AXLE,CENTER-WHEEL .625 X 18.625 | 1 | $53.95 | |
| 12 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 13 | 8002-131 | SCREW,CAP-HH 5/16-18 X.875 G5 Z&Y | 1 | $0.95 | |
| 14 | 1704-212 | BRACKET,MTG-FRT ARM-RH-PTD BLK | 1 | $143.95 | |
| 14 | 1704-213 | BRACKET,MTG-FRT ARM-LH-PTD BLK | 1 | $82.59 | |
| 15 | 0704-279 | BRKT,AUX-WHEEL-WELD'T | 1 | $20.95 | |
| 16 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 17 | 0704-589 | PIVOT,REAR SHOCK-PTD BLK | 1 | $30.95 | |
| 18 | 0623-922 | FITTING,GREASE-PRESS FIT W/CHK BALL | 1 | $1.92 | |
| 19 | 0604-612 | BLOCK,SPRING TENSION | 1 | $29.95 | |
| 20 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 21 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 22 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 0704-280 | BRKT,MTG-AUX-WHL-R.H.-WELD'T | 1 | $61.95 | |
| 23 | 0704-281 | BRKT,MTG-AUX-WHL-L.H.-WELD'T | 1 | $61.95 | |
| 24 | 0604-859 | BLOCK,WEAR H.D.OVER LOAD | 1 | $33.95 | |
| 26 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 27 | 0604-739 | BUSHING,OVERLOAD | 1 | $4.26 | |
| 28 | 1604-450 | SPRING,TRIPLE OVERLOAD ASSY | 1 | $341.95 | |
| 30 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 31 | 0603-105 | SPACER,AUX WHEEL-INSIDE | 1 | $13.73 | |
| 32 | 1604-724 | AXLE,XBRC-.625X16.375 (5/16-18) | 1 | $95.95 | |
| 33 | 0604-945 | SPACER,AUX-WHEEL-INSIDE | 1 | $63.95 | |
| 34 | 0604-951 | AXLE,INNER-AUX-WHEEL .625 X 14.750 | 1 | $54.95 | |
| 35 | 1604-693 | WHEEL,IDL-5.63 SPOKED(2-5/8DIA INSR)SILV | 1 | $53.95 |
