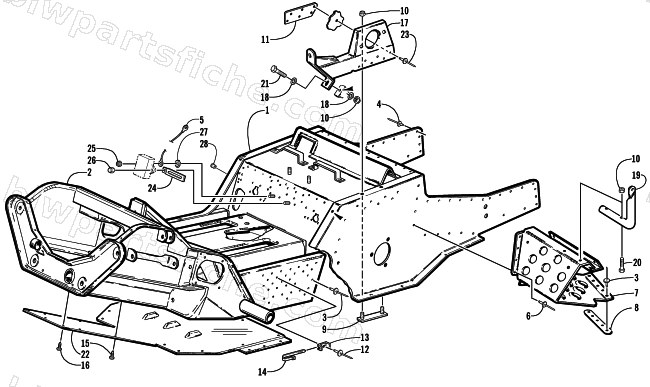

2002 Arctic Cat BEARCAT WIDE TRACK () — FRONT FRAME AND FOOTREST ASSEMBLY
2002 BEARCAT WIDE TRACK ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-942 | CHASSIS-FRT END-PTD BLK | 1 | $837.95 | |
| 2 | 0707-858 | FRONT END-PTD BLK | 1 | $746.95 | |
| 3 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 4 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 5 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 | |
| 6 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 7 | 0706-917 | FOOTREST-LH (PAINTED BLK - 0616-287) | 1 | $163.95 | |
| 8 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 9 | 0707-840 | PLATE,BEARING MTG-PTD BLK | 1 | $23.39 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0607-388 | PLATE,BACKING-BEARING SUPPORT | 1 | $3.99 | |
| 12 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 13 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0623-569 | SCREW,SELF TAP-TSFH #10-32X1/2 TYPF Z&Y | 1 | $0.68 | |
| 16 | 0623-700 | SCREW,SELF TAP-TSTRH #10-12X3/4 TP A Z&Y | 1 | $10.95 | |
| 18 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 19 | 0716-310 | TUBE,BUMPER-SUPPORT | 1 | $18.95 | |
| 20 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 21 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 22 | 0716-396 | PLATE,SKID | 1 | $123.95 | |
| 23 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 24 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 25 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 27 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 28 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 |
